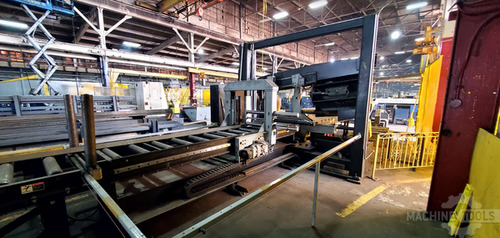

HYDMECH H-28A-120

Description

Specifications

SPECIFICATIONS

Equipped With

EQUIPPED WITH

Standard Machine Features:

• 6° canted head

• Split front vise (retractable datum vise available on request at no charge)

• Shuttle with automatic multi-indexing up to 120″ in a single stroke with automatic kerf compensation, powered by a rack and pinion servo drive

• Steel guide arms, with idler side guide arm mechanically linked to front vise movable jaw for proper spacing

• Full capacity hydraulic overhead bundling

• 10 HP VFD, true direct blade drive (no belts/pulleys)

• Robust steel base

• Full capacity, full stroking hydraulic vises with hydraulic positive down feed

• High resolution feed rate valve for constant feed rate when cutting special alloys

• Blade chamber separates material from cut part

• Cast iron band wheels

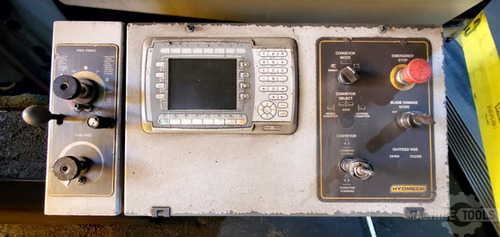

• 7″ color touch screen HMI with Mitsubishi FX5U PLC, interactive control with operator messages, programmable head up position, built-in diagnostics, simple software updates, 999 jobs, 10 jobs in queue

• Replaceable blade brush

• Automatic chip removal auger

• Out of stock switch

• Easy access electrical panel and hydraulics

• Blade breakage switch

• Hydraulic band tensioning with digital readout

• 5 HP hydraulic pump provides system pressure

• Hydraulic carbide guide tensioning

• Hardened, replaceable wear plates

• Safety door interlocks

• Flood coolant with wash down hose

• Work light

• Laser light

• Variable vise pressure

Optional Machine Features:

• Blade deviation

• Squaring vise

• Mist lubrication

• Remote console (15′ cord)

• Outboard vise clamping options available upon request

• Power transformer

• Roller discharge table

• Vertical alignment rollers

• Idler conveyors

• Powered conveyors

Spec Sheet

SPEC SHEET

Capacity:

• Rectangular (h x w): 24″ x 28″

• Round: 25″

• Square: 24″

Blade:

• Size: 2″ x 25′

• Drive: 10 HP

• Speed: 40–300 SFM

Hydraulics & Fluids:

• Hydraulic Tank Capacity: 9.5 Gallons

• Coolant Tank Capacity: 40 Gallons

Machine Specs:

• Voltage: 480 V

• Weight: 25,700 lbs

• Table Height: 37″

• Automatic Multi-indexing: 0–120″

• Dimensions (W x L x H): 161″ x 230″ x 120″
