Hydmech DM-1318P

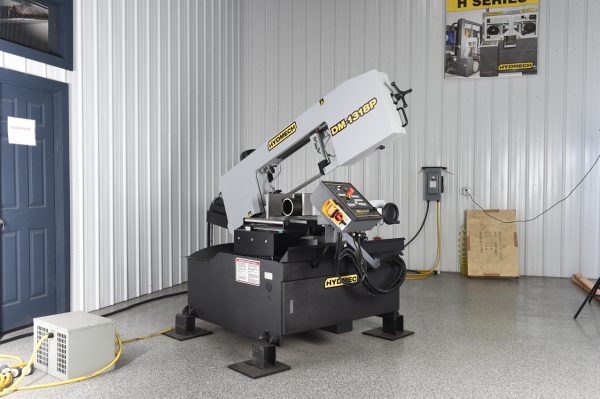

The DM-1318P double miter, semi-automatic band saw provides exceptional miter cutting for medium duty applications.
Its versatile swing head with easy to read angle scale saves operator time. The heavy-duty gearbox and motor assembly ensures the DM-1318P will deliver maximum productivity. The cast iron double swivel head features an easy to read angle scale and “quick” stops at 90, 45, and 60 degree positions. The cast iron vise slides on linear ways which can be easily positioned to either the left or right side of the head and includes a quick release mechanism for rapid positioning.
Featuring a 13″H x 17 3/4″ W capacity at 90°, 5.5 HP motor, and 1 1/4″ blade, the DM-1318P is a versatile double miter band saw.
Videos Hydmech DM-1318P
Hydmech DM-1318P
Description
Description
The DM-1318P double miter, semi-automatic band saw provides exceptional miter cutting for medium duty applications.
Specifications
Specifications
| Capacity | Rectangular (h x w) | Round |
| 90° | 13″ x 17 3/4″ | 13″ |
| 45° Left | 11 3/4″ x 11 3/4″ | 11 3/4″ |
| 45° Right | 11 3/4″ x 11 3/4″ | 11 3/4″ |
| 30° Left | 7 3/4″ x 7 3/4″ | 7 3/4″ |
| 30° Right | 7 3/4″ x 7 3/4″ | 7 3/4″ |
| Blade Size | 1 1/4” x 14’ 9” | |
| Blade Drive | 5.5 HP VFD | |
| Machine Voltage | 480 v (all other voltages require optional transformer) | |
| Blade Speed | 65-330 SFM | |
| Coolant Tank Capacity | 21 Gallons | |
| Machine Weight | 2,515 lbs. | |
| Table Height | 35” | |
Special Features
Special Features
STANDARD FEATURES
- Heavy duty cast iron saw head that can swing up to 60 degrees both directions
- 5.5 HP true direct blade drive – no belts/pulleys
- On-demand hydraulics save energy and money

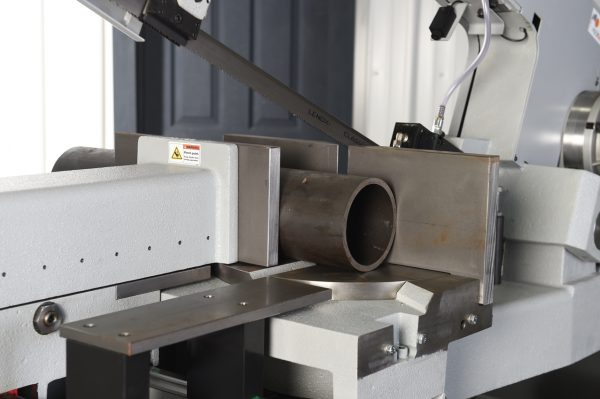

- Quick release, hydraulic cast-iron material vise on linear ways
- Rotating table with cut line moves in tandem with sawing head
- Mechanical band tensioning with digital readout
- Gravity feed sawing feed
- Automatic hydraulic head lifting in semi-automatic mode
- Swing away, semi-automatic operator control panel
- Replaceable blade brush
- Robust steel base
- Easy to read angle scale
- Digital readout angle display
- Adjustable guide arm with linear guide adjustments
- Pre-set, replaceable carbide guide inserts
- Safety door interlocks
- Flood coolant
- Laser light
- Variable vise pressure
Semi-Automatic Operation

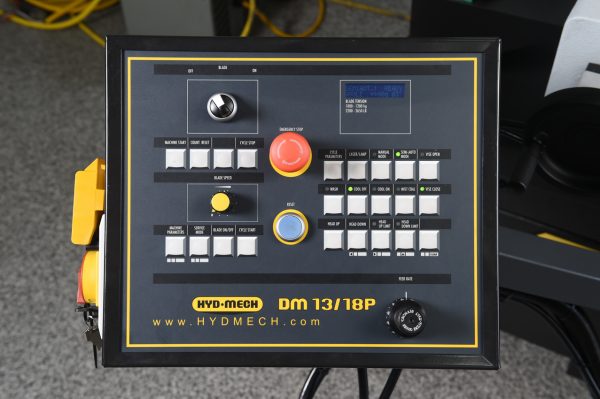

The DM-1318P’s semi-automatic control with digital angle display provides fast set up times and cut accuracy.
Flood Coolant System

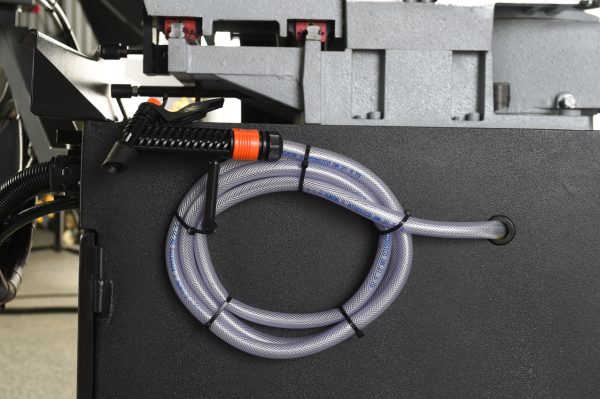

A recirculating flood coolant system with wash down hose provides better blade life.
Cast Iron Construction
Heavy, cast iron head helps absorb vibrations when cutting structural material helping reduce cutting noise, increasing band life and providing better quality cuts.
Pivoting Saw Head
The saw head can be swung a full 60 degrees simplifying the process of cutting angles when needed.
Optional Features
Optional Features
OPTIONAL FEATURES
- Mist lubrication (shop air required)
- Work light
- Idler conveyors
- Power transformer
