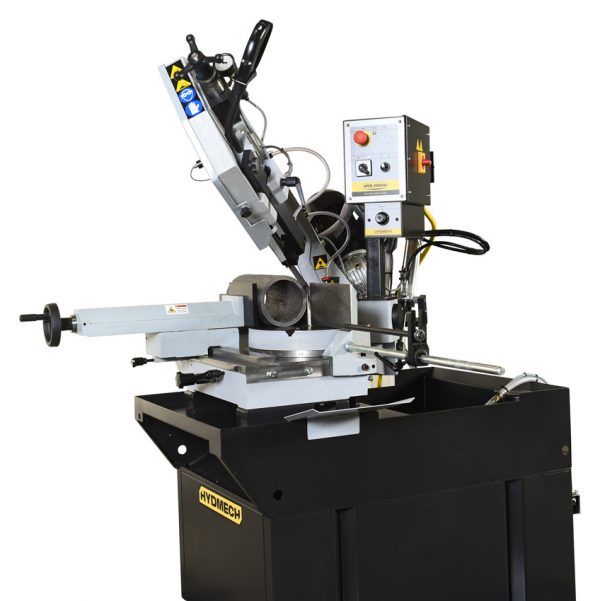

Hydmech DM-10P

Efficient, Compact, and Built for Precision

The DM-10P double miter band saw combines exceptional cutting performance with the added convenience of semi-automatic functionality—automatically raising the saw head after each cut to reduce operator fatigue and boost productivity.

Its cast iron head and vises deliver superior rigidity to minimize vibration and enhance cutting accuracy. A rotating table with a single cut line ensures the head and blade groove move in unison for smooth, precise mitering.

Compact and user-friendly, the DM-10P is ideal for tight workspaces, with intuitive operator controls and easily accessible electrical components—all designed to keep your workflow moving.

Get a Quote

Categories: , Tag:

Hydmech DM-10P

Description

Description

Efficient, Compact, and Built for Precision

Specifications

Specifications

Capacity Rectangular (h x w) Round
90° 9 1/2″ x 11″ 10″
45° Left 6 1/4″ x 4 1/2″ 5 3/4″
45° Right 8 1/4″ x 7″ 7 1/4″
30° Right 5″ x 4 1/2″ 4″
Blade Size 1” x 9’ 8”
Blade Drive 2/2.4 HP VFD
Machine Voltage 480 v (all other voltages require optional transformer)
Blade Speed two speed 118-236 SFM
Coolant Tank Capacity 3.5 Gallons
Machine Weight 970 lbs.
Table Height 34”
Dimensions (w x l x h) 39” x 68” x 73”

Standard Features

Standard Features

Standard Features

  • Semi-automatic, double miter, electro-hydraulic, easy swing, cast saw head
  • Quick release cast-iron material vise with dovetail ways
  • Rotating table with cut slot that moves in tandem with sawing head
  • Band tension indicator
  • Saw head movement via control handle with safety spring-loaded trigger switch
  • Remote foot pedal starts semi-automatic cutting cycle
  • Operator control box with head feed mode selector (manual, powered, semi-automatic)
  • Push-button controls for head positioning and blade start/stop
  • Blade speed selection switch
  • Coolant on/off switch with wash hose
  • Emergency stop button
  • Replaceable blade brush
  • Small footprint
  • Robust steel base
  • Easy-to-read angle scale
  • Adjustable guide arm
  • Pre-set, replaceable carbide guide inserts
  • True-direct drive – no belts or pulleys
  • Mechanical blade tensioning
  • Safety door interlocks
  • Flood coolant system
  • Adjustable work stop

Cast Iron Construction

The DM-10 cast iron construction provides less vibration and longer blade life.

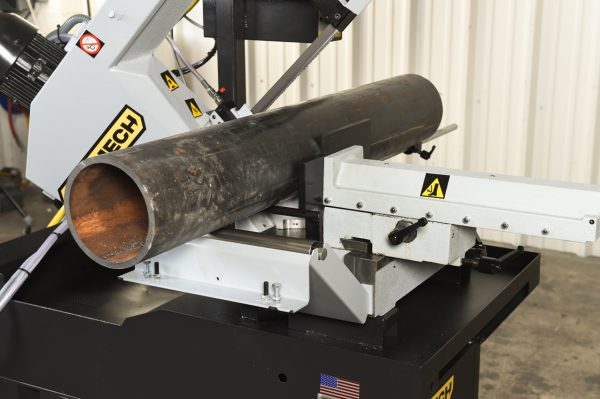

Quick Release Vise

A quick release vise allows for easier setup times between jobs or cuts.



Controller

Operator control box with head feed mode selector (manual, powered, semi-automatic)

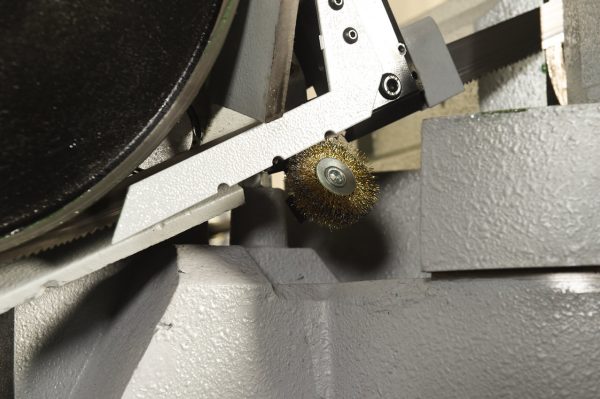

Driven Chip Brush

The DM-10 features a blade driven chip brush ensuring proper chip removal and increasing blade life.

Optional Features

Optional Features

Optional Features

  • Mist lubrication system (shop air required)
  • Pneumatic material vise with foot pedal
  • Single phase conversion (limits user to high blade speed only)
  • K110 5’ infeed/out feed roller table
  • 59″ R2 work stop for K110 roller table
  • Adapter plate for K110 table (required for outfeed side mounting)
  • Power transformer for 208 V, 240 V, or 575 V operation
