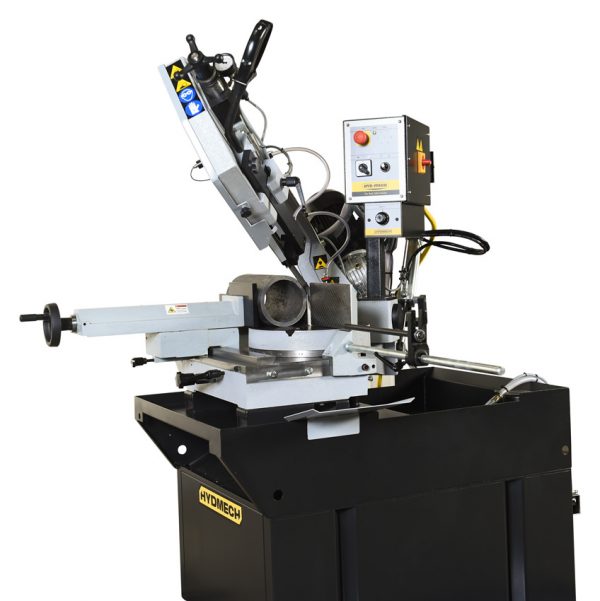

Hydmech DM-10

This versatile saw saves operator set-up time and its compact design makes it ideal for use in tight working spaces.

Exceptional cutting capability. Its cast iron head and vises are designed for rigidity – absorbing vibrations and ensuring accuracy during cutting. A rotating table with a single cut line allows head and blade groove to move together for smooth, accurate mitering.

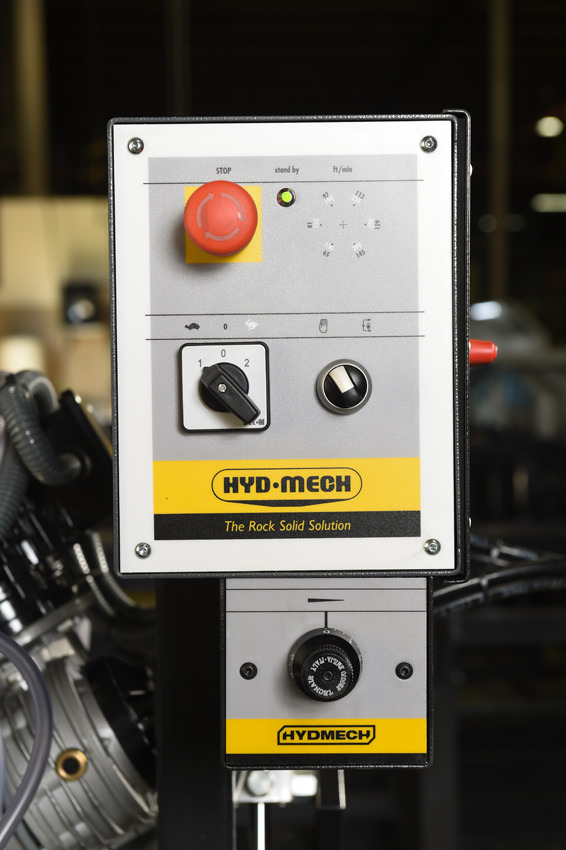

From user-friendly operator controls, to easily accessible electrical panels and cabinets, the DM-10 double miter band saw is solidly built to provide maximum productivity.

Get a Quote

Categories: , Tag:

Videos Hydmech DM-10

Hydmech DM-10

Description

Description

This versatile saw saves operator set-up time and its compact design makes it ideal for use in tight working spaces.

Specifications

Specifications

Capacity Rectangular (h x w) Round
90° 9 1/2″ x 11″ 10″
45° Left 6 1/4″ x 4 1/2″ 5 3/4″
45° Right 8 1/4″ x 7″ 7 1/4″
30° Right 5″ x 4 1/2″ 4″
Blade Size 1” x 9’ 8”
Blade Drive 2/2.4 HP VFD
Machine Voltage 480 v (all other voltages require optional transformer)
Blade Speed two speed 118-236 SFM
Coolant Tank Capacity 3.5 Gallons
Machine Weight 970 lbs.
Table Height 34”
Dimensions (w x l x h) 35.5” x 68” x 65”

Standard Features

Standard Features

STANDARD FEATURES

  • Manually operated, double miter, easy swing, cast saw head
  • Quick release cast-iron material vise with dovetail ways
  • Rotating table with cut slot that moves in tandem with sawing head
  • Band tension indicator
  • Infinitely adjustable, gravity feeding, sawing head
  • Replaceable blade brush
  • Small footprint
  • Robust steel base
  • Easy to read angle scale
  • Adjustable guide arm
  • Pre-set, replaceable carbide guide inserts
  • True-direct drive – no belts or pulleys
  • Mechanical blade tensioning
  • Safety door interlocks
  • Flood coolant
  • Adjustable work stop

Cast Iron Construction

The DM-10 cast iron construction provides less vibration and longer blade life.

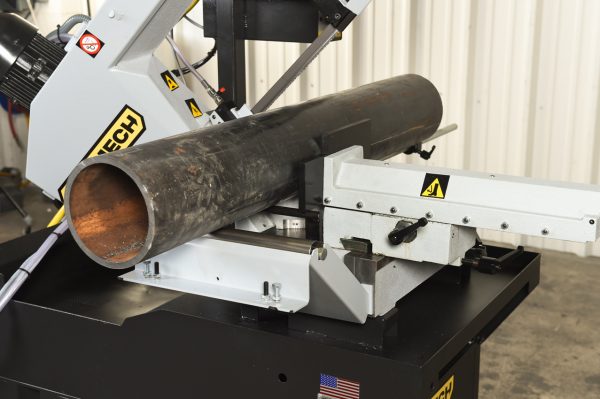

Quick Release Vise

A quick release vise allows for easier setup times between jobs or cuts.



Dual Feed System

A dual feed system allows the operator to choose between a metered feed or pull down feed.

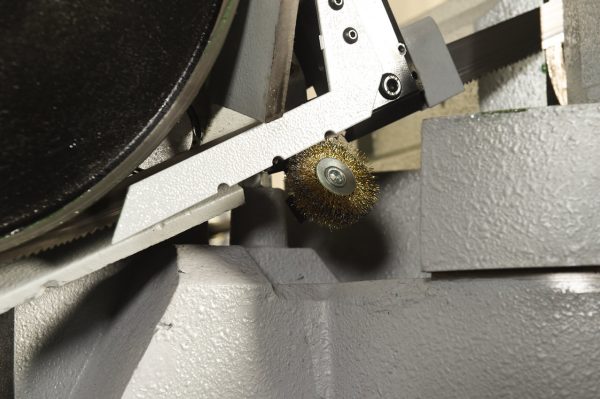

Driven Chip Brush

The DM-10 features a blade driven chip brush ensuring proper chip removal and increasing blade life.

Optional Features

Optional Features

OPTIONAL FEATURES

  • Mist lubrication
  • Pneumatic material vise with foot pedal
  • Single phase (Note: limits user to high blade speed only)
  • K110 5’ infeed/out feed roller
  • 59″ R2 work stop for K110 table
  • Adaptor plate for K110 table
  • Power transformer
