Hydmech CSNC-80
Increase Efficiency Without Sacrificing Quality!

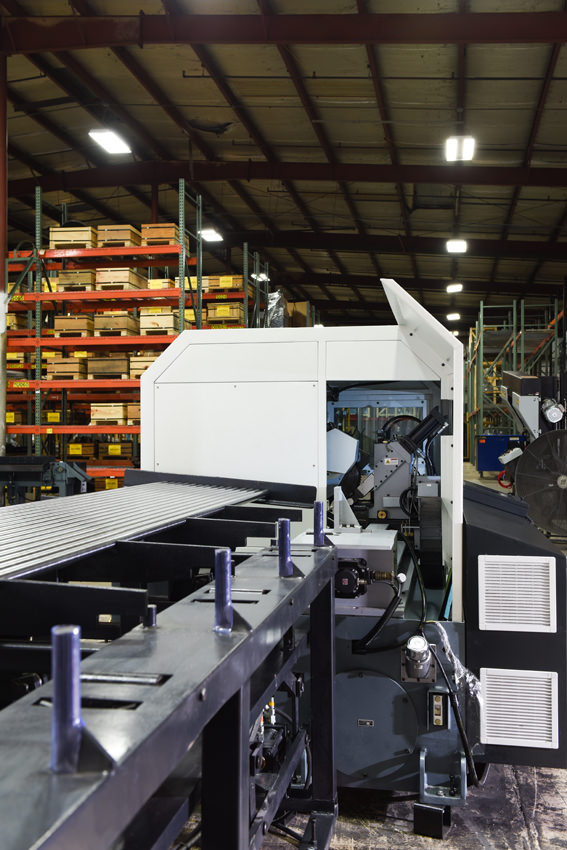

Achieve consistent results with this carbide sawing machine that features a high level of productivity, length accuracy, and clean, burr free cuts.

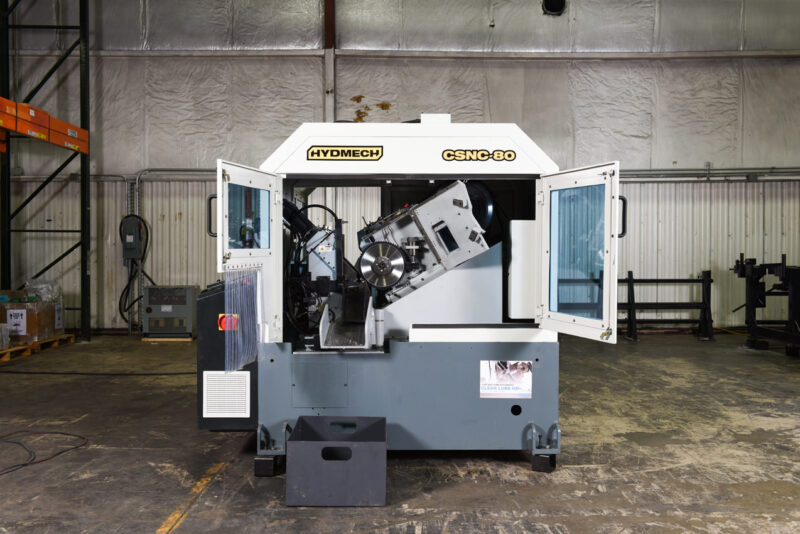

Trim cuts and remnants are separated from good parts automatically via a heavy-duty discharge sorting chute. Designed for operator safety, this machine is completely enclosed and features safety door interlocks which if a door opens during operation, the machine will shut off.
Featuring a 0.4” – 3.15” round capacity at 90°, 15 HP motor, and a 285 mm blade, the CSNC-80 is a versatile high-speed cutting machine.
Hydmech CSNC-80
Description
Description
Increase Efficiency Without Sacrificing Quality!
Specifications
Specifications
| Cutting Capacity Round 90° | 0.4″-3.15″ |
| Cutting Capacity Square 90° | 0.4″-2.36″ |
| Blade Drive | 15 HP VFD |
| Blade Speed | 50-200 MPM |
| Blade Size | Carbide/ Cermet tipped: 285 mm x 1.7 mm kerf |
| Bar Stock Length | 10′-20′ |
| Trim Cut | Zero or programmable from 0.4′ or longer |
| Cut off Length | Min 0.24” up to 39” |
| Single Stroke | 40″ |
| Remnant Length | 3.35” + cut length + cutter thickness |
| Hydraulic Motor | 3 HP |
| Bar Loading Magazine | Inclined storage width of 27.9″ for rounds |
| Machine Capacity | 6,613 lbs. |
| Machine Weight | 6613 lbs. |
| Dimensions (w x l x h) | 85” x 102” x 88″ |
Standard Features
Standard Features
STANDARD FEATURES
- Mitsubishi PLC Controller allows for 200 programs to be saved
- Job monitoring with cycle time, job duration, parts count and AMP load setting to protect the saw blade.
- Material library with US steel grades menu with ability to add custom material grades
- Bar feed features a material gripper feed carriage indexing via ball screw and AC servo drive. Shuttle speed: 7.87” per second.
- Heavy duty saw head is driven by ball screw and AC servo drive
- Mist exhaust system
- Patent pending blade cooling system.
- Bar retracts automatically for contact free return stroke of the saw blade

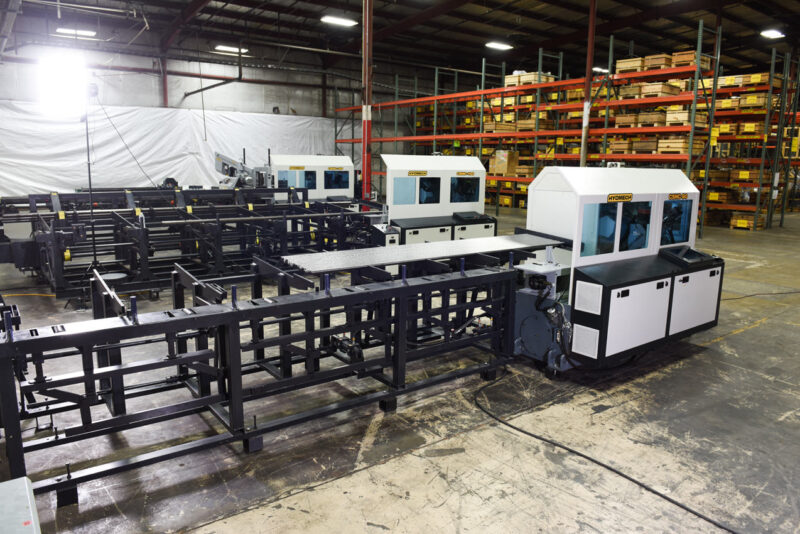

- Universal Bar Loader for round and square material with safety guard sheets provides inclined storage width of 27.9” (710 mm) for rounds, manual incline setting. Capacity: 3,748 lbs.
- PLC controlled automatic oil lubrication of all moving parts
- Output sorting ensures trim cuts and remnant pieces are sorted automatically from good parts
- Variable vise pressure control with dial gauge – two stations
- Cooling nozzle
- Blade lubrication features triple jet system to lubricate blade. If the coolant level gets low, the machine will alarm to alert the operator.
- Hydraulic rotating wired chip brush rotates in both directions for proper chip removal
- Status light indicating tower
- Chip auger
- Air cooled electric magnetic head break removes all backlash.
- Built in hydraulic tank and power pack
- Tool steel hardened saw guide plates
- Power transformer
- Four blade starter package
- Blade specs: 285 mm x 2.0 kerf x 1.70 mm body x 32 mm bore
- Pin holes: 4/9/50 mm
- Bolt holes: 4/11/63 mm
Optional Features
Optional Features
OPTIONAL FEATURES
- PLC program modification
- Chain chip conveyor
- Universal Hydraulic incline adjustment bar loader
- 2 ton- chain and finger bundle unscrambler
- Maintenance kit
- Motorized sliding out-feed conveyor table and guarding in the following lengths – 1000 mm, 2000 mm, and 3000mm
