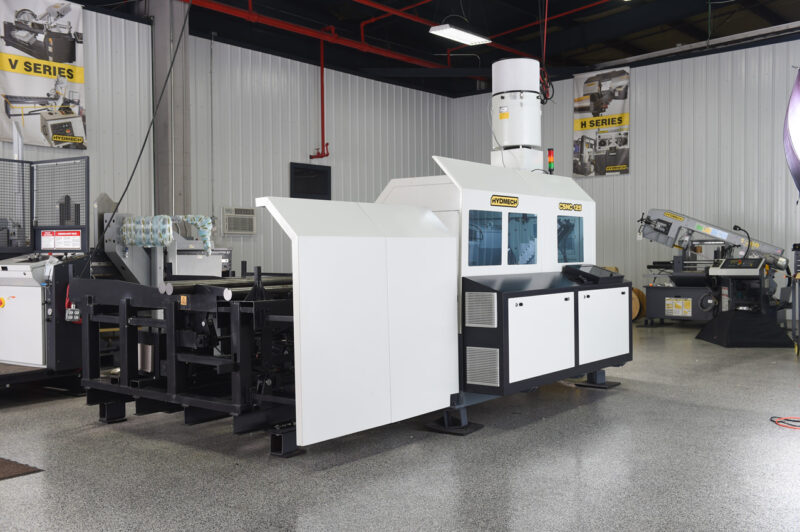

Hydmech CSNC-125
90 Degree Cuts Suitable for Ferrous and Non-Ferrous Materials

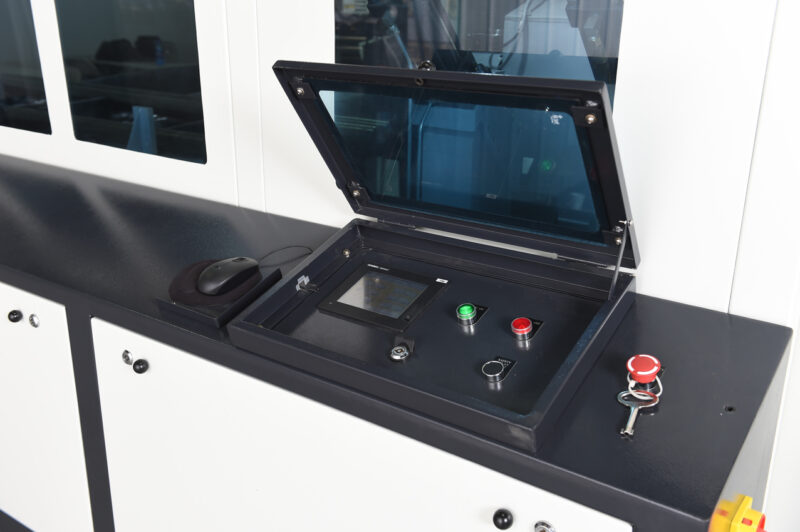

The CSNC-125 allows for user friendly programming of cutting cycles. Featuring a colour touch screen control and “set up wizard” for quick set-up of jobs. 200 cutting programs can be saved for repeat jobs and a comprehensive US Steel grade menu assists in setting proper cutting parameters.
Featuring a 1” – 5” round capacity at 90°, 25 HP motor, and a 460 mm blade, the CSNC-125 is a versatile high-speed cutting machine.
Hydmech CSNC-125
Description
Description
90 Degree Cuts Suitable for Ferrous and Non-Ferrous Materials
Specifications
Specifications
| Cutting Capacity Round 90° | 1″- 5″ |
| Cutting Capacity Square 90° | 1″- 3.54″ |
| Blade Drive | 25 HP VFD |
| Blade Speed | 50-180 MPM |
| Blade Size | Carbide/ Cermet tipped: 460mm x 2.7 mm kerf |
| Bar Stock Length | 10′-20′ |
| Trim Cut | Zero or programmable from 0.4′ or longer |
| Cut off Length | Min 0.4” up to 39” |
| Single Stroke | 39″ |
| Remnant Length | 3.94” / 100 mm + cut length + cutter thickness |
| Hydraulic Motor | 3 HP VFD |
| Bar Loading Magazine | Inclined storage width of 42″ for rounds |
| Machine Capacity | 13,277 lbs. |
| Machine Weight | 9,920 lbs. |
| Dimensions (w x l x h) | 110” x 100” x 80” |
Standard Features
Standard Features
STANDARD FEATURES
- Mitsubishi PLC Controller allows for 200 programs to be saved
- Job monitoring with cycle time, job duration, parts count and AMP load setting to protect the saw blade.
- Material library with US steel grades menu with ability to add custom material grades
- Bar feed features a roller bed with a material gripper feed carriage indexing via ball screw and AC servo drive. Shuttle speed: 7.87” per second.

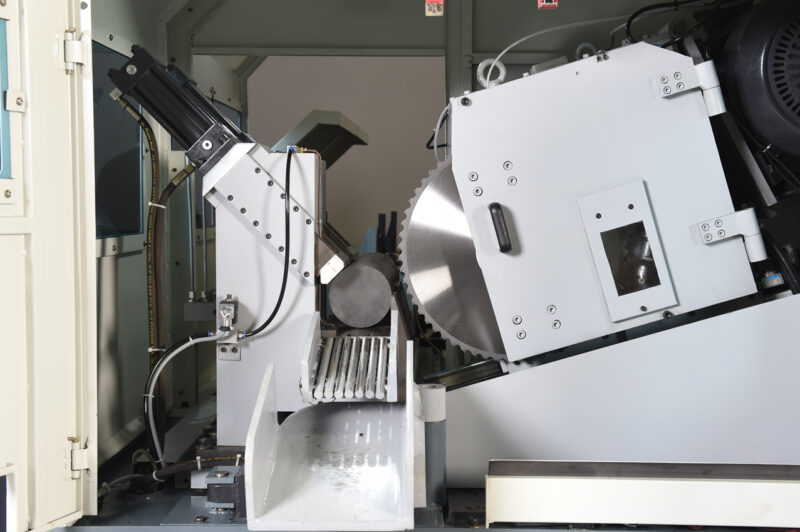

- Heavy duty saw head is driven by ball screw and AC servo drive with a patent pending counterbalance feature
- Mist exhaust system
- Patent pending blade cooling system
- Air moisture separator
- Bar retracts automatically for contact free return stroke of the saw blade
- Universal Bar Loader for round and square material with hydraulic incline pitch adjustment and safety guard sheets provides inclined storage width of 42” (1070 mm) for rounds. Capacity: 10,360 lbs.
- PLC controlled automatic oil lubrication of all moving parts
- Output sorting ensures trim cuts and remnant pieces are sorted automatically from good parts
- Variable vise pressure control with dial gauge – two stations
- Cooling nozzle
- Blade lubrication features triple jet system to lubricate blade. If the coolant level gets low, the machine will alarm to alert the operator.
- Hydraulic rotating wired chip brush rotates in both directions for proper chip removal
- Status light indicating tower
- Chip auger
- Air cooled electric magnetic head break removes all backlash.
- Built in hydraulic tank and power pack
- Tool steel hardened precision blade guides
- Power transformer
- Four blade starter package
- Blade specs: 460 mm x 2.7 kerf x 2.25 mm body x 50 mm bore
- Pin holes: 4/15/80 mm
- Bolt holes: 4/12/90 mm
Optional Features
Optional Features
OPTIONAL FEATURES
- PLC program modification
- Maintenance kit
- Strap style Bundle loader – max weight 4 tons
- Chain chip conveyor
- Long cut bar out feed motorized conveyor table with guarding in the following lengths – 1000 mm, 2000 mm, and 3000 mm
