Hydmech C350-2S
Semi-Automatic Vertical Column Cold Saw
The C350-2S is a semi-automatic vertical column cold saw ideal for light to medium duty metal cutting applications. The C350-2S miters from 60° left to 45° right.
Featuring a 4 1/2″ round hollow capacity, 3 Hp motor, and 14″ blade, the C350-2S is the ideal choice for quick, clean, and accurate metal cutting.
Hydmech C350-2S
Description
Specifications
Specifications
| Round Hollow 90° | 4 1/2” |
| Square Hollow 90° | 3 3/4” |
| Rectangular Hollow (hxl) 90° | 7” x 3 3/4” |
| Blade Size | Max. 14″ Min.12″ |
| Blade Drive | 3 HP VFD |
| Blade Speed | 15/30/45/50 rpm |
| Machine Weight | 827 lbs. |
| Dimensions (w x l x h) | 47” x 37” x 80” |
Standard Features
Standard Features
STANDARD FEATURES
- Semi-automatic operation
- Heavy duty sawing head with manual movement on adjustable dual precision linear rails

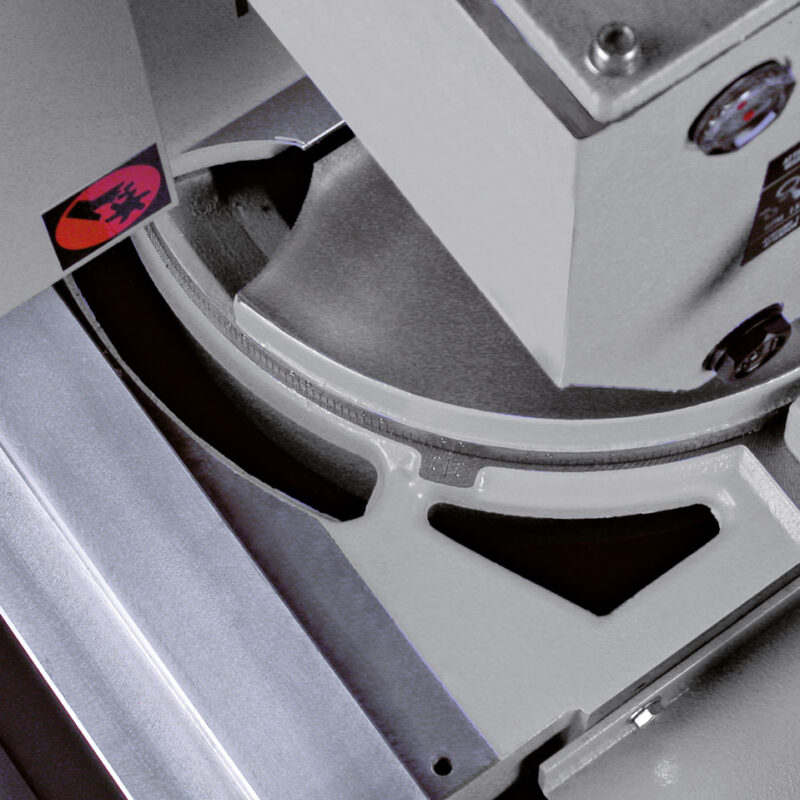

- Robust sawing head miters 45° left and right, and 60° right
- Four blade speeds of 15,30,45, and 90 rpm
- Anti-burr clamp with double locking system

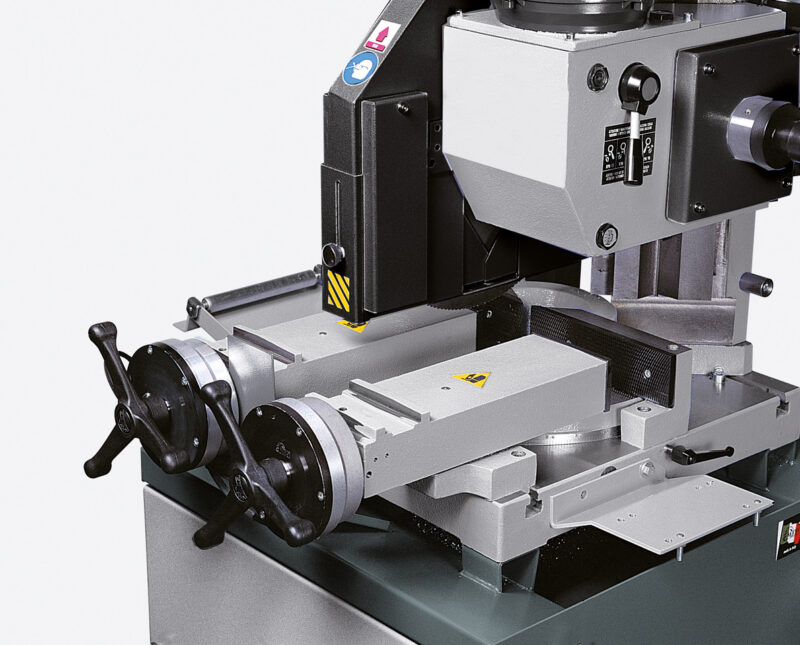

- Vertical pneumatic vise
- Pneumatic horizontal operating vise capable of sliding on dovetail to adjust with saw head mitered position

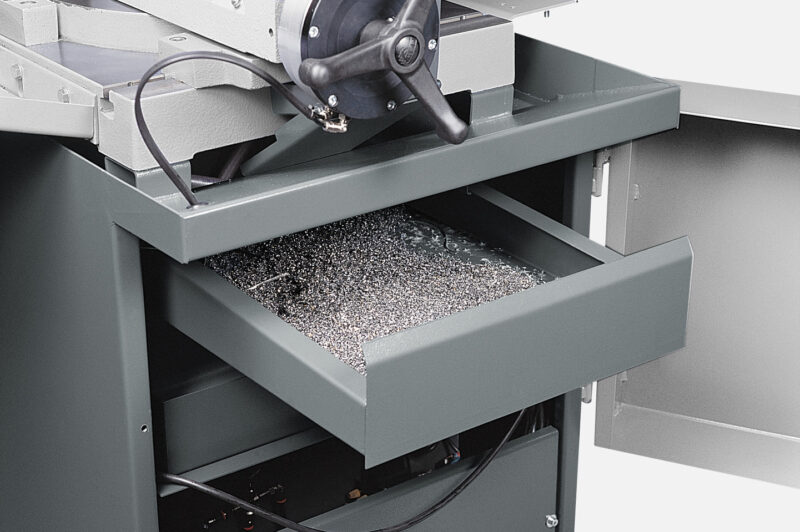

- Enclosed steel base with chip drawer and coolant tank
- Replaceable blade brush
- Ergonomically positioned control panel includes main disconnect, programmable sawing stroke, saw head feed rate control, and LED display for machine diagnostics
- Adjustable material stop with ruler
- Flood coolant with electrical coolant pump and wash down hose
- One blade included
Optional Features
Optional Features
OPTIONAL FEATURES

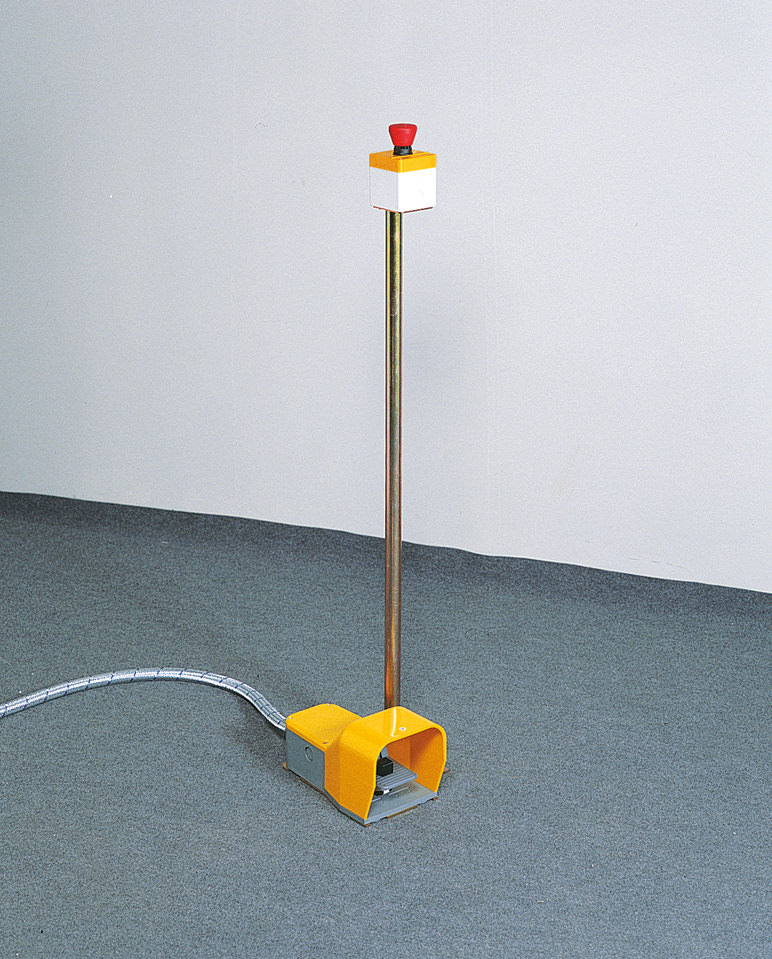

- Foot pedal control with emergency stop
- Second pneumatic horizontal operating vise
- Mist lubrication system
- K40 5’ roller table
- “Flip over” material stops with 60” ruler
- R2 ruler extensions for outfeed roller tables
- Roller table support stands (extra legs)
- Roller table adapter – required if ordering roller table for out feed
- HSS Oxide Coated Blade
