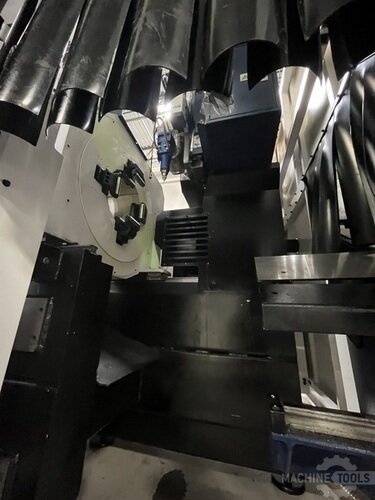

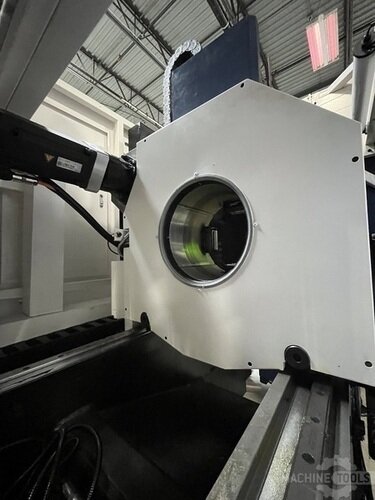

Interior tooling area of an HSG TS2 tube laser cutting machine

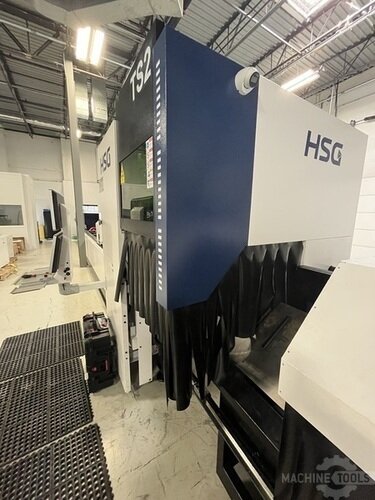

Operator-side view of HSG TS2 tube laser cutting machine with green safety window and strip curtain
Operator-side view of HSG TS2 tube laser cutting machine enclosure

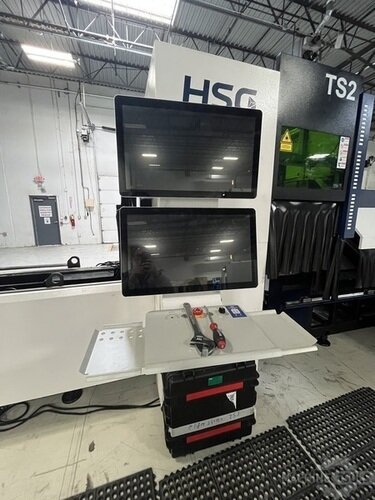

HSG TS2 tube laser cutting machine control console with dual monitors and emergency stop
HSG TS2 tube laser cutting machine detail view
HSG TS2 tube laser cutting machine detail view
HSG TS2 tube laser cutting machine tooling
HSG TS2 tube laser cutting machine detail view
HSG TS2 tube laser cutting machine operator-side view
HSG TS2 tube laser cutting machine control panel
Operator-side view of an HSG TS2 tube laser cutting machine with loading table
HSG TS2 tube laser cutting machine operator-side view with conveyor table and bellows curtain
HSG TS2 tube laser cutting machine detail view
HSG TS2 tube laser cutting machine detail view
HSG TS2 tube laser cutting machine electrical cabinet

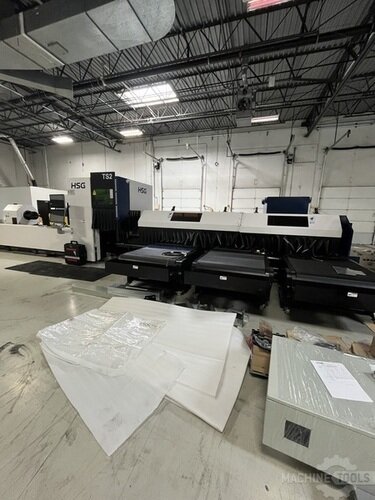

Front view of HSG TS2 tube laser cutting machine in a shop
Tube Lasers

HSG TS2-90S

Brand – HSG
Model – TS2-90S
Type – Laser Cutters
New – In-Stock

Get a Quote

Categories: , Tags: ,

Videos HSG TS2-90S

HSG TS2-90S

Description

Description

Brand – HSG
Model – TS2-90S
Type – Laser Cutters
New – In-Stock

Learn More

Specifications

Specifications

SPECIFICATIONS

Wattage 6 kw
Control CNC (HSG X)

Equipped With

Equipped With

EQUIPPED WITH

  • Water Chiller
  • Transformer & Voltage Stabilizer
  • Laser Source Cabinet
  • Safety Package

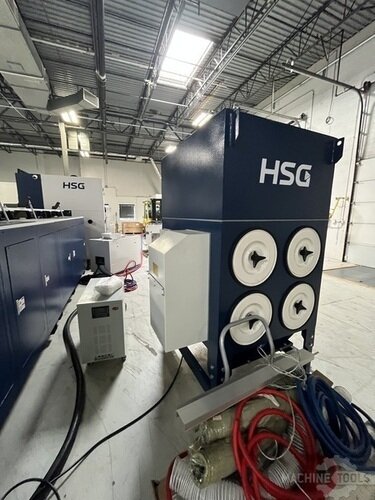

  • Dust Collector
  • Unloading Machine TS2-AU45-E
  • 1 Seat of HSG Nesting Software
  • Multi Tube Auto Loading Machine R5AL01-9
  • Seam Detection
  • HSG Bevel Cutting Head
  • Consumables Package
  • Warranty

Spec Sheet

Spec Sheet

SPEC SHEET

  • Tube Processing Range:

    • Round Tube: φ20 – φ273

    • Square Tube: □20×20 – □220×220

    • Rectangular Tube: Diagonal ≤254 mm

    • Angle Steel: ≤8# (80×80 mm)

    • Channel: ≤8# (80×43 mm)

  • Optional Claw:

    • Angle Steel: ≤18# (180×180 mm)

    • Channel: ≤20# (180×70 mm)

    • H Beam: ≤18# (180×180 mm)

  • Notice: All bevel cutting pipes should be ≥40 mm with wall thickness ≥3 mm

  • Range of Incoming Materials for Tube: 1000 – 9200 mm

  • Positioning Precision (X/Y Axis): ±0.05 mm/m

  • Repetitive Positioning Precision (X/Y Axis): ±0.03 mm

  • Speed of Chuck: 140 RPM (reduced if tube weight increases)

  • Max. Linkage Speed: 140 mm/s (adjusted for heavier tubes)

  • Max. Linkage Acceleration: 1.4 G

  • Maximum Single Tube Weight: ~300 kg (33 kg/m)

  • Tailing Length: ≥220 mm (straight cut; for bevel cutting, double chuck clamping mode)

  • Machine Dimensions: ~16,000 × 6,400 × 2,800 mm

  • Bevel Angle: ±45°

  • Bevel Cutting Surface: V, Y

  • Electrical: 3 Phase, 380V, 50/60Hz

  • Power / Current: 65 kW / 130 A (6,000 W)
