HSG TP80S

Brand – HSG
Model – TP80S
Type – Laser Cutters
Year – 2023
Condition – Used – Excellent

Get a Quote

Categories: , Tags: ,

HSG TP80S

Description

Description

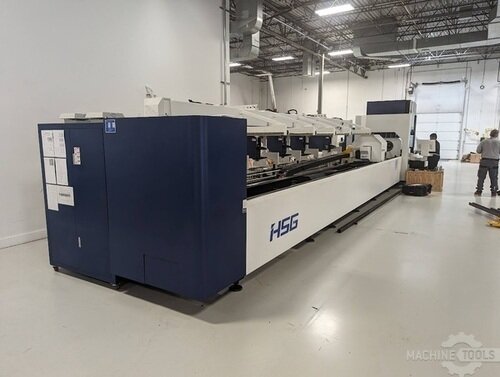

8-Meter (26.2′) In-Feed Tube Laser with 6kW Raycus Fiber Source featuring a 3D 5-Axis Cutting Head. The rotational axis offers ±45° movement with acceleration up to 3600°/s² and precision of ±6.1”. Equipped with an electromagnetic anti-bumping device, welded reduction gears, and high-accuracy speed reducers for smooth, reliable operation. HSG X-Bus CNC controls provide fast EtherCAT communication, laser energy precision, scan cutting, auto height following, tube splicing library, and intelligent nesting. Includes Au09-A unloading system with follow-up cutting and automatic flap height adjustment for varying pipe sizes. High-efficiency, environmentally friendly design with international-standard components and local service support.

Specifications

Specifications

SPECIFICATIONS

Sheet-L 314.96″
Wattage 6000 w
IPM 5500 cmpm
X 314.96″
Dimensions 14000*4700*2600mm (with loading rack)
Control CNC (HSG-X Bus Control System)

Equipped With

Equipped With

EQUIPPED WITH

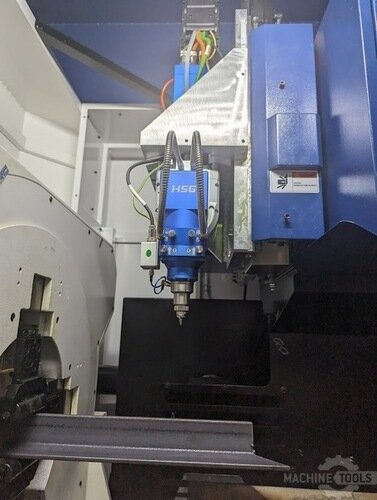

  • HSG-LA4 Laser Head

  • Raycus 6,000 Watt Fiber Laser Source

  • HSG X-Bus Control System

  • HSG Mechanical Platform

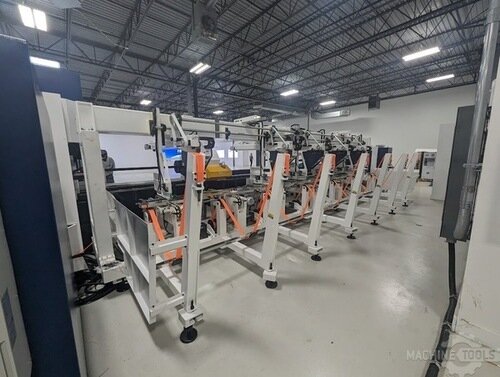

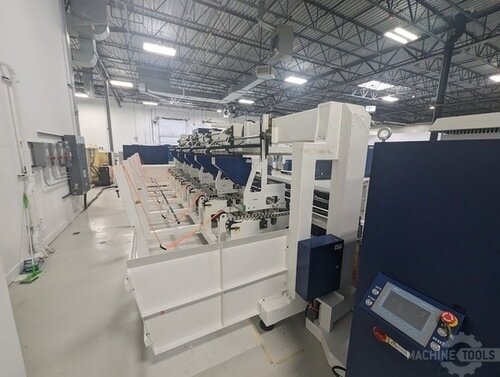

  • Bundle Loader

  • 3m Auto Follow-Up Unloading Device

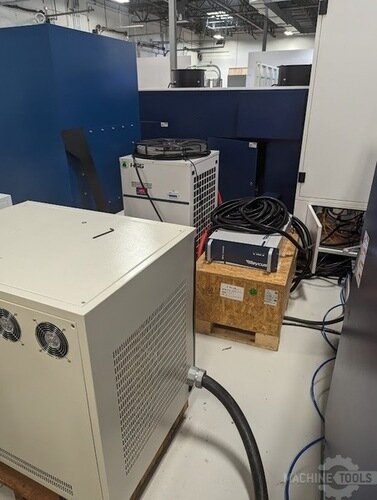

  • Water Chiller

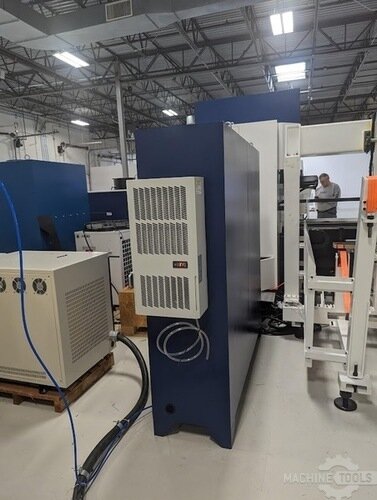

  • Air-Conditioned Electrical Cabinet

  • Voltage Transformer / Stabilizer

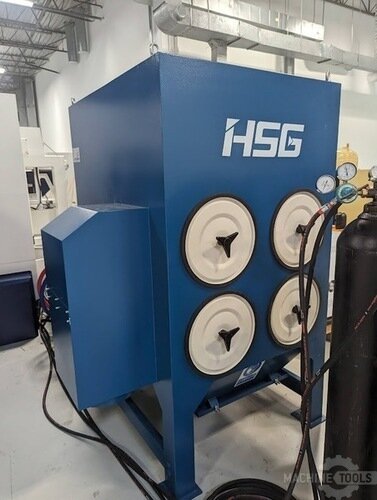

  • Donaldson Dust Collector

  • Safety Package

  • Spare Clamping Jaws / Optics

Spec Sheet

Spec Sheet

SPEC SHEET

  • Max Tube Length: 314.96″ (≈26.25 ft)

  • Max Single Tube Weight: 440 lbs

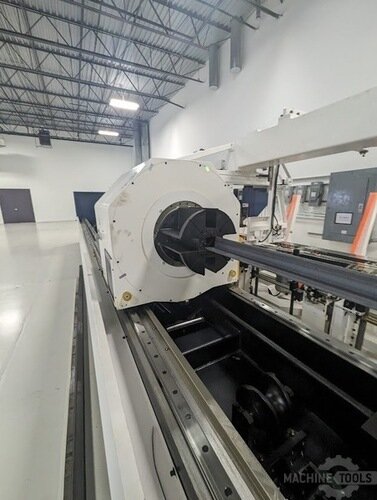

  • Rotating Speed of Chucks: 120 r/min

  • No-Load Speed: 140 m/min

  • X/Y-Axis Positioning Accuracy: ±0.00118″

  • X/Y-Axis Repositioning Accuracy: ±0.00118″

  • Acceleration: 1.2 G

  • Tailing Length: 8.66″

  • Cutting Capacity:

    • Round Tube: 0.78″ – 10.74″

    • Square Tube: 0.78″ – 7.87″

    • Rectangular Tube (Diagonal): 10.74″

    • U & L Shapes (each side): 200 mm (customizable)

    • H Shape (each side): 150 mm (customizable)

  • Overall Dimensions: 41.01′ x 15.41′ x 8.5′
