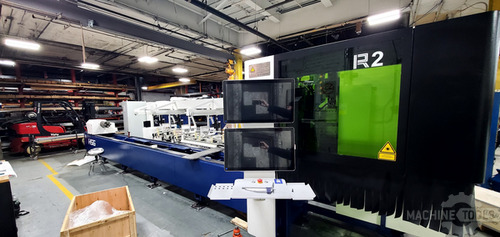

HSG R2

Description

Specifications

SPECIFICATIONS

Equipped With

EQUIPPED WITH

• Raycus Fiber Laser Source (3 kW / 6 kW)
• HSG Klinge Cutting Head
• HSG X10000 Control System
• HSG Machine Bed

Standard Accessories:

• Water Chiller
• Dust Collector
• Light Barriers
• Air-Conditioned Electrical Cabinet (AC Room for Laser)
• Transformer & Voltage Stabilizer
• 3m Unloading Machine

Spec Sheet

SPEC SHEET

• Tube Processing Range:
  • Round Tube: Ø8 – Ø240 mm
  • Square Tube: 8 x 8 – 240 x 240 mm
  • Rectangular Tube: 8 mm ≤ Edge Length ≤ 240 mm
  • Angle Steel: 20 x 20 – 200 x 200 mm
  • Channel: 50 x 37 – 200 x 75 mm
• Incoming Material Length: 1000 – 6500 mm
• Positioning Accuracy (X/Y): ±0.05 mm/m
• Repeat Positioning Accuracy (X/Y): ±0.03 mm
• Chuck Speed: 100 RPM
• Max Linkage Speed: 120 m/min
• Max Acceleration: 1.0 G
• Max Single Tube Weight: Approx. 300 kg (46 kg/m)
• Tailing Length:
  • ≥85 mm (Single Chuck Mode; Suggested Tube Length ≤500 mm, ≤5 kg)
  • ≥215 mm (Double Chuck Mode)

Machine Dimensions:

• Standard: 10110 x 2530 x 2215 mm
• Automatic Loading: 10110 x 4790 x 2215 mm
• Multi-Tube Loading: 10110 x 4835 x 2215 mm

Electrical:

• Phases: 3
• Voltage: 380V
• Frequency: 50/60 Hz
• Power / Current:
  • 31 kW / 62 A (3000W)
  • 46 kW / 92 A (6000W)
