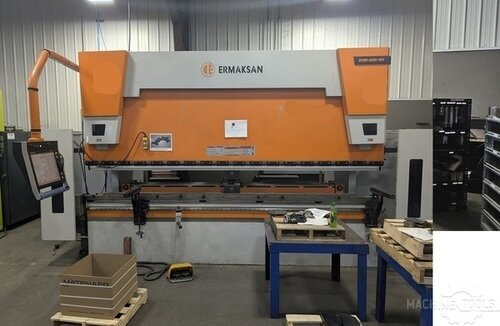

ERMAKSAN SPEED BEND PRO 3760-175

Description

Specifications

SPECIFICATIONS

Equipped With

EQUIPPED WITH

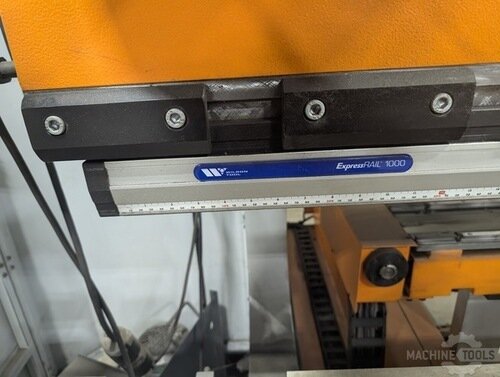

• Wilson Express Rail 1000 W/T (Z2 Upper Hydraulic Clamp)

• Wilson Hydraulic Pump

• American Die Riser (Full Length)

• CNC Crowning System

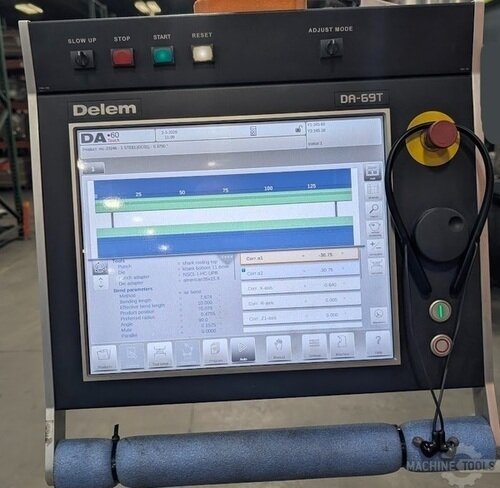

• Delem DA69 Touch CNC 3D CAD Control

  • Profile-T 3D CAD Offline Programming Software

• 6-Axis CNC Configuration (Y1, Y2, X, R, Z1, Z2)

• Heidenhain Linear Glass Scales

  • ±0.0002″ Resolution

  • ±0.0004″ Repeatability

• Mitsubishi MelServo JS Servo Motors & Drives

  • 31.5″ X-Axis Travel

  • 9.8″ R-Axis Travel

  • Belt-Driven Z1 & Z2

• CNC Motorized Wedge Crowning (Anti-Deflection)

• LazerSafe PCSS Ram-Mounted Laser Safety System

  • 6mm Mute Point / 24–40 IPM Bending Speeds

• Precision Tooling Package

  • Wilson Express Rail 1000 (W/T)

  • Flat-Top American Die Riser

• Hoerbiger Hydraulic Valve System

• Siemens Electrical System

• (2) Micro-Adjustable Backgauge Fingers

• (2) Front Sliding Support Arms on THK Linear Ways

• Rear Safety Guard with Photocell (Fiessler / Sick W2000)

• Side Guards with Safety Interlock Switches

• Double Foot Pedal Control

• Dual Voltage Electrical (230/460V, 3-Phase, 60Hz)

• RAL 7035 / RAL 9007 Color Scheme

• English Labels & Manuals

Spec Sheet

SPEC SHEET

• Pre-Owned 2023

• Low Hours: 3,622.2 Hours, 244,436 Strokes (as of February 3, 2026)

• Delem DA69 Touch CNC 3D CAD Control

  • Profile-T 3D CAD Offline Programming Software

• 6-Axis Configuration (Y1, Y2, X, R, Z1, Z2)

• Heidenhain Linear Glass Scales

  • ±0.0002″ Resolution

  • ±0.0004″ Repeatability

• Mitsubishi MelServo JS Servo Motors & Drives

  • 31.5″ X-Axis Travel

  • 9.8″ R-Axis Travel

  • Belt-Driven Z1 & Z2

• CNC Motorized Wedge Crowning (Anti-Deflection)

• LazerSafe PCSS Ram-Mounted Laser Safety

  • 6mm Mute Point / 24–40 IPM Bending Speeds

• Precision Tooling Package (See Image)

  • Wilson Express Rail 1000 W/T (Z2 Upper)

  • Flat-Top American Die Riser

• Hoerbiger Hydraulic Valve System

• Siemens Electrical System

• (2) Micro-Adjustable Backgauge Fingers

• (2) Front Sliding Support Arms on THK Linear Ways

• Rear Guard with Photocell (Fiessler / Sick W2000, CAT .04)

• Side Guards with Safety Switch

• Double Foot Pedal

• Dual Voltage Electrical: 230/460V, 3-Phase, 60Hz

• RAL 7035 / RAL 9007 Color Scheme
