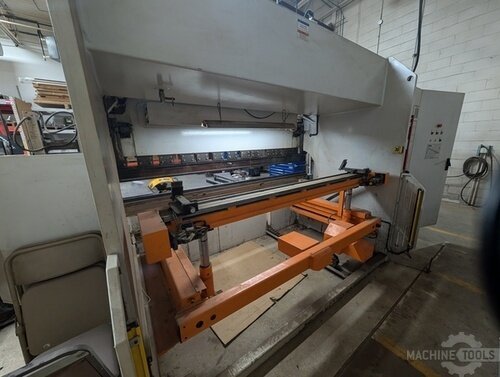

ERMAKSAN SPEED BEND PRO 3100X135
ERMAKSAN SPEED BEND PRO 3100X135
Description
Description
Brand – ERMAKSAN
Model – SPEED BEND PRO 3100X135
Type – Press Brakes
Condition – Used – Good
Specifications
Specifications
| Tonnage | 165.346 T |
| Type | HYD |
| Overall Length | 10.17′ |
| Between Housings | 102.36″ |
| Stroke | 10.8″ |
| # Axis | 6 |
| Dimensions | 192.91, 84.65″, 104.33″ |
| Weight | 18500 |
| Control | CNC (TASK 84 3D) |
Equipped With
Equipped With
Equipped With
- TASK 84 3D CONTROL
- 6 Axis Y1, Y2, X, R, Z1, Z2
- CNC Crowning

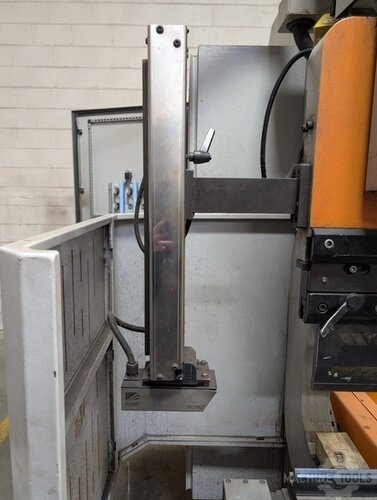

- Laser Safe PCSS Safety
- Promecam Clamps
- Precision Rolleri Punch,Rolleri M460R W 4 Way Die, and Universal Die Holder (60mm Shoulders, 1/2″ American Tang Slot)

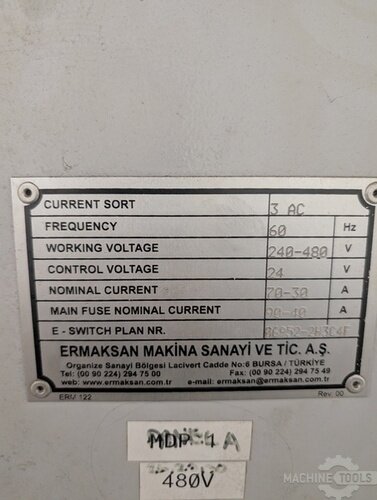

- DUAL VOLTAGE 230v / 460v 3ph
Spec Sheet
Spec Sheet
Spec Sheet
- Tonnage: 149 US Tons
- Bending Length (A): 122.05” Inches
- Distance Between Housings (B): 102.36” Inches
- Stroke (C): 10.83” Inches
- Daylight (Open Height) (D): 20.87” Inches
- Throat Depth (E): 16.14” Inches
- Table Height (F): 35.43” Inches
- Table Width (G): 3.54” Inches
- Approach Speed: 472 IPM
- Bending Speed: 28.2 IPM
- Return Speed: 450 IPM
- Back Gauge Travel (X Axis): 31.5” Inches
- Back Gauge Travel (R Axis): 9.84” Inches
- Max Noise: 70 dB
- Main Motor: 14.75 HP
- Oil Capacity: 79.26 US Gallons
- Machine Length (L): 192.91” Inches
- Machine Width (W): 84.65” Inches
- Machine Height (H): 104.33” Inches
- Weight: 18,050 lbs
