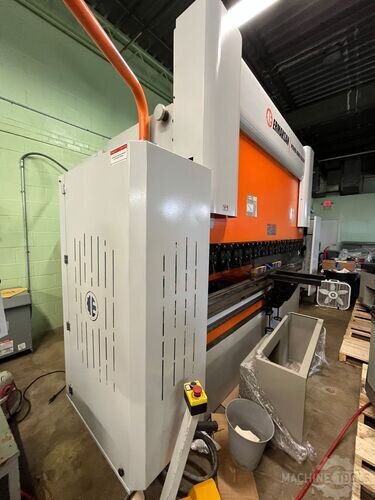

ERMAKSAN POWER BEND FALCON
ERMAKSAN POWER BEND FALCON
Description
Description
Specifications
Specifications
SPECIFICATIONS
| Tonnage | 149 T |
| Overall Length | 10.17′ |
| Between Housings | 102.4″ |
| Stroke | 10.8″ |
| # Axis | 4 |
| Weight | 18042 lbs |
Equipped With
Equipped With
EQUIPPED WITH

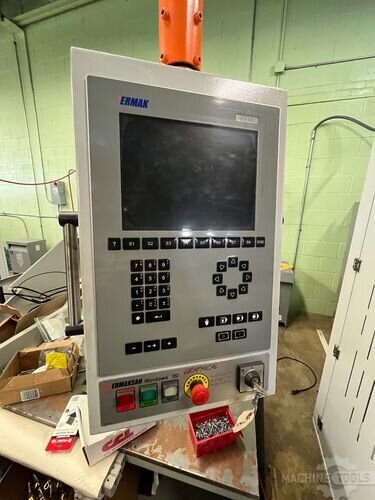

- Delem ER70 4-Axis Control

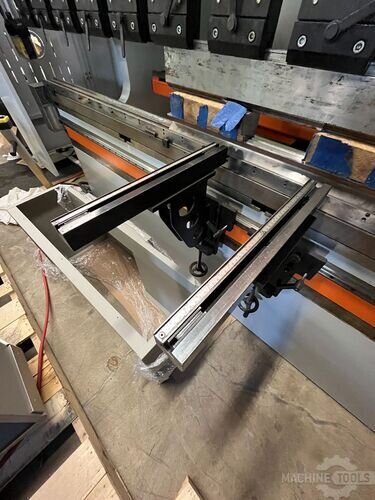

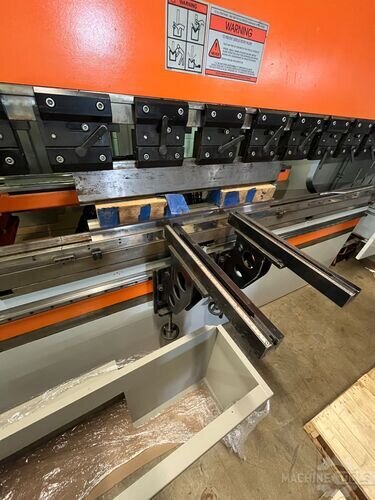

- Dual Front Supports

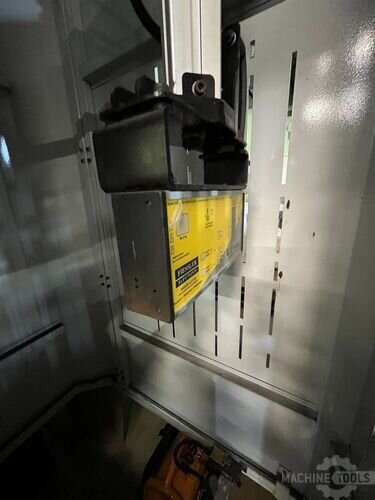

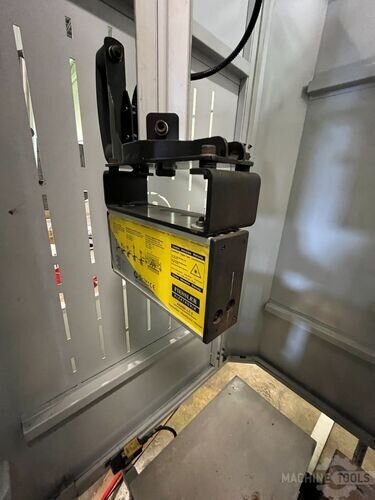

- Fiessler AKAS-LC II Laser Safety
Spec Sheet
Spec Sheet
SPEC SHEET
- Bending Length (A): 122.0″
- Max Power: 148.5 US Tons
- Machine Axis Configuration: Y1, Y2, X, R
Speeds:
- Free Down Speed: 7.9 in/sec
- Bending Speed: 0.4 in/sec
- Return Speed: 4.7 in/sec
Axis Travels:
- Stroke (Y1, Y2): 10.8″
- Back Gauge Stroke (X Axis): 31.5″
- Back Gauge Stroke (R Axis): 9.8″
Machine Dimensions & Capacity:
- Distance Between Housings (B): 102.4″
- Throat Depth (E): 16.1″
- Table Height (F): 35.4″
- Table Width (G): 3.5″
- Daylight / Open Height (D): 21.7″
System & Power:
- Crowning: Motorized
- Plant Voltage: 230V or 460V
- IP Rating: IP54
- Main Motor: 15 HP
- Back Gauge Motors (X, R): 2 x 2.4 Nm
- Oil Capacity: 53 US Gallons
- Max Pressure: 3768 PSI
Operating Conditions:
- Plant Temperature Range: 0–50°C
- Max Noise Level: 70 dB
Overall Machine Size:
- Machine Length (L): 167″
- Machine Width (W): 81″
- Machine Height (H): 110″
- Weight: 18,042 lbs
