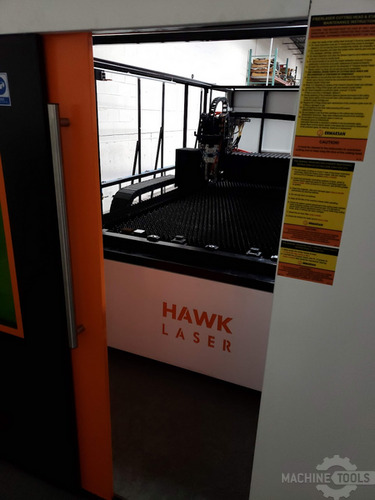

ERMAKSAN FIBERMAK HAWK
Brand – ERMAKSAN
Model – FIBERMAK HAWK
Type – Laser Cutters
Condition – Used – Excellent
Videos ERMAKSAN FIBERMAK HAWK
ERMAKSAN FIBERMAK HAWK
Description
Description
Brand – ERMAKSAN
Model – FIBERMAK HAWK
Type – Laser Cutters
Condition – Used – Excellent
Specifications
Specifications
Specifications
Sheet-W | 5′ |
Sheet-L | 10′ |
Wattage | 1 kw |
Control | CNC (Beckhoff) |
Equipped With
Equipped With
Equipped With
- Beckhoff CNC Control
- Beckhoff TwinCat Servo Drives / Motors (1.5G)
- IPG-YLR 2000 Watt Fiber Laser Source
- Precitec Auto-Focus Cutting Head
- Lantek ExpertCUT CAD/CAM Software
- Dust Collector
- Light Safety Barriers
Spec Sheet
Spec Sheet
Spec Sheet
- TECHNICAL SPECIFICATIONS HAWK 2000.3×1.5
- RESONATOR Watt YGL 2000
- POWER RANGE % 10-105
- LASER BEAM QUALITY rad 3-Feb
- POWER STABILITY % 1
- PULSE FREQUENCY/RANGE kHz 10
- LASER WAVE LENGTH nm 1070 +/-5
- FIBER CABLE DIAMETER um 100
- EXCITATION – Laser Diode
- COOLING WATER FLOW RATE l/min 16
- CUTTING CAPACITIES – – –
- Mild Steel in 0.625
- Stainless in .315″
- Aluminum in .250″
- Copper in .197″
- Brass in .157″
- Galvanized in .157″
- WORKING AREA in 60″ x 120″
- MAX. LOAD CAPACITY lbs 6,160
- MACHINE AXES – 4 (X, Y, Z, U)
- AXIAL MOVEMENTS – – –
- X, U Axis/ Servo in 120″
- Y Axis/ Servo in 60″
- Z Axis/ Servo in 4
- ACCELERATION – – –
- X, U Axis/ Servo G 1
- Y Axis/ Servo G 1
- Z Axis/ Servo G 1
- MAX. AXIS SPEEDS – – –
- Combined IPM 4,176
- Single Axis IPM 2,955
- POSITIONING ACCURACY in .004″
- REPETITION ACCURACY in .002″
- AUXILARY GASES – – –
- Oxygen – 0.5 – 6 Bar
- Nitrogen – 0.5 – 25 Bar
- Dry Air – 0.5 – 25 Bar
- CUTTING HEAD – Precitec LightCutter
- CNC – Beckhoff 2215
- CAD/CAM SOFTWARE – Lantek Expert CUT
- NETWORK CONNECTION – Ethernet
- AVERAGE CONSUMPTION kW 12
- MACHINE DIMENSIONS in 201″ x 104″ x 71″
- MACHINE WEIGHT lbs 9,000
