ERMAKSAN FIBERMAK GEN-3 G-FORCE

Description

Specifications

SPECIFICATIONS

Equipped With

EQUIPPED WITH

• 5′ x 10′ Dual-Pallet Cutting Tables (35-second changeover)

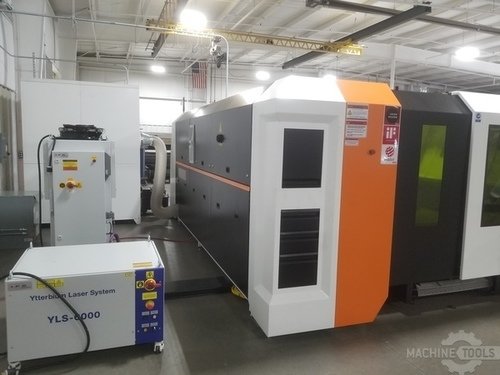

• 6.0 kW IPG-YLS Resonator with Chiller (with additional module redundancy)

• 2.5G (5,551 IPM) Beckhoff Servo Motors & Drives

• Precitec ProCutter Auto-Focus “Smart” Cutting Head

• Beckhoff CNC TS Control on Pendant Arm (full remote connectivity)

• Lantek INSIDE Camera CNC with drag-and-drop programming to sheet/remnant

• Lantek ExpertCUT CAD/CAM Software

• Nozzle-Centering Camera System

• Nozzle Cleaning & Calibration Station

• Small Part / Scrap Conveyor

• Operator Remote Tethered Controller

• Air-Conditioned Electrical Cabinet

• Automatic Lubrication System

• Internal Desiccant Dryer (for air/moisture control)

• Dust Collector with waste gas and fume filtration unit

• SICK Light Curtains for loading table safeguarding

Spec Sheet

SPEC SHEET

Laser Specifications

• Resonator: YLS 6000

• Power Range: 10–105%

• Beam Quality @ Collimator: 2–4 mm·mrad

• Power Stability: ±1–2%

• Pulse Frequency Range: 5 kHz

• Laser Wavelength: 1075 ± 5 nm

• Output Fiber Core Diameter: 100 µm

• Excitation: Laser diode

• Cooling Water Flow Rate: 10.6 gal/min

Cutting Capacity (Production)

• Mild Steel: 1.000″

• Stainless Steel: 0.590″

• Aluminum: 0.470″

Work Area & Capacity

• Maximum Worksheet Size: 121″ x 61″

• Maximum Load Capacity: 3,307 lbs

Axes & Travel

• Axes: 4-Axis (X, Y, Z, U)

• X & U Axes Travel: 121″

• Y Axis Travel: 61″

• Z Axis Travel: 6″

Performance

• Acceleration:

  • X, U Axes: 1.5 G

  • Y Axis: 1.5 G

  • Z Axis: 2.5 G

• Max Velocity (Simultaneous): 5,551 IPM

• Single Axis Speed (X/Y): 3,937 IPM

• Positioning Accuracy: ±0.001″

• Repeatability: ±0.0006″

Cutting System

• Cutting Head: Precitec ProCutter

• Focal Length: 5″ – 8″

• Shuttle Table: Dual Pallet (35-second changeover)

Assist Gas

• Mild Steel: Oxygen (0.5–6 bar)

• Stainless Steel: Nitrogen (0.5–25 bar)

• Aluminum: Dry Air or Nitrogen (0.5–25 bar)

Control & Software

• CNC: Beckhoff CP6242

• CAD/CAM Software: Lantek ExpertCUT

• Network Connection: Ethernet

• Operator Interface: 15″ display (1024 x 768), touchscreen, alphanumeric keyboard, PLC keys

Power & Dimensions

• Average Power Consumption: 51 HP

• Machine Dimensions (L x W x H): 362″ x 146″ x 87″

• Machine Weight: 24,690 lbs
