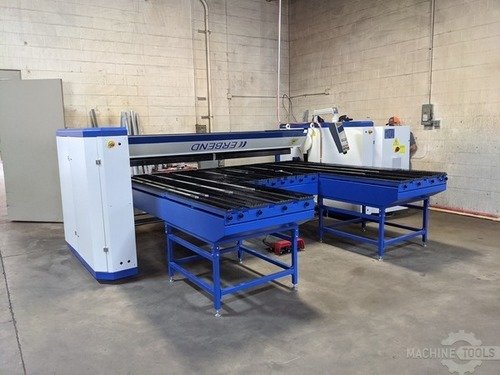

ERBEND MFD 3220

Brand – ERBEND
Model – MFD 3220
Type – Folding Machines
Year – 2019
Condition – Used – Excellent

Get a Quote

ERBEND MFD 3220

Description

Description

Brand – ERBEND
Model – MFD 3220
Type – Folding Machines
Year – 2019
Condition – Used – Excellent

Specifications

Specifications

SPECIFICATIONS

Max Thickness 0.078″
Max Thickness (gauge) 14 gauge
Overall Length 10.49′
Dimensions 98″/175″/74″
Weight 16,500 lbs
Control CNC (ERFOLD ADVANCED CNC Graphic Software on 15.6” Touch Screen control)

Equipped With

Equipped With

EQUIPPED WITH

  • ERFOLD Advanced CNC Graphic Software on 15.6″ Touch Screen Control
  • U-Shape Backgauge
  • Roller Ball Table

Spec Sheet

Spec Sheet

SPEC SHEET

  • Max Foldable Sheet Length: 10.49 ft (3220 mm)
  • Max Thickness Capacity (Full Length): 0.078″ (14 ga) steel

Clamping Beam (Z Axis):

  • Drive Power: SEW AC Motor, 1.5 HP
  • Opening Height (No Tools): 6.3″
  • Clamping Speed: 1.98 in/sec

Folding Beam (Y Axis):

  • Drive Power: SEW AC Motor, 3 HP
  • Folding Angle: 0–150°
  • Folding Speed: 85°/sec

Folding Beam Adjustment (A Axis):

  • Adjustment Height: 1.37″
  • Adjustment Type: Manual

Back Gauge System (X Axis):

  • Speed: 9.8 in/sec
  • Min/Max Gauging: 0.078″ – 39.37″ (2 mm – 1000 mm)

Clamping Beam Rotation (C Axis):

  • Rotational Speed: 20°/sec
