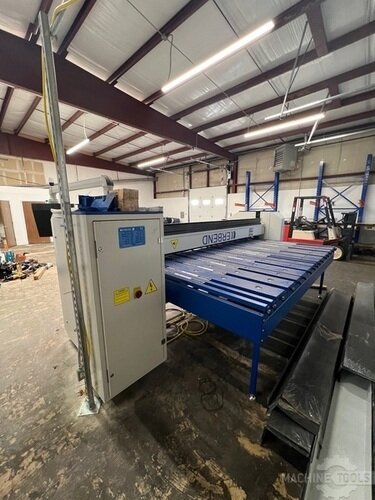

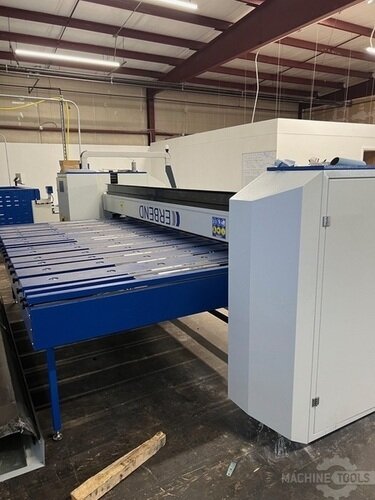

ERBEND MFD 3220
ERBEND MFD 3220
Description
Specifications
Specifications
SPECIFICATIONS
| Max Thickness | 0.078″ |
| Max Thickness (gauge) | 14 gauge |
| Overall Length | 10.49′ |
| Dimensions | 98.4” / 175.19” / 74.80″ |
| Weight | 12,500 lbs |
| Control | CNC (Erfold) |
Equipped With
Equipped With
EQUIPPED WITH
- Erfold Basic CNC LBL

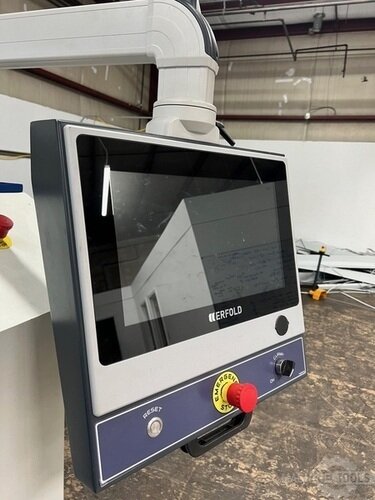

- CNC control software on 15.6″ touchscreen controller with swivel arm
- Solid lower beam tool without channels
- Front light barriers
Spec Sheet
Spec Sheet
SPEC SHEET
- Max Thickness 0.08″
- Max Thickness (gauge) 14 gauge
- Overall Length 10.49′
- Control CNC (ERFOLD graphical CNC Control)
- Dimensions 175 x 87 x 75 in.
- Weight 10141 lbs
- 7.87 inch opening height capacity on 180° rotating clamping beam with 2 tool stations as 3.93 inch high segmented goat foot tool and 20° single piece sharpnose tool
- Eccentric upper beam power transmission system for rapid clamping/unclamping
- Manual folding beam adjustment
- 39.37 inch servo backgauge system with feather grooves
- 0.39 and 0.98 inch wide single piece folding tools as 2 sets
