ERBEND MFB 3230

Description

Specifications

SPECIFICATIONS

Equipped With

EQUIPPED WITH

• Manual folding beam adjustment (A Axis)

• Standard CNC controller software:

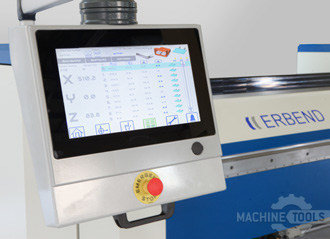

  • 15.6″ touchscreen PC on swivel arm

  • Line-by-line part programming with numerical axis values

  • Create, save, load parts with different names, materials, and thicknesses

  • Open/drop hemming function

  • Multi-radius bending function

  • 16 GB memory for unlimited part storage

  • Manual axis controls, alarm/error indications, detailed machine parameters

• Standard safety features:

  • 3-step foot pedal with panic button (left pedal: clamping beam up, middle pedal: folding beam and all axes stop)

  • Front light barriers for operator protection

  • LED function lights (Red = emergency/error, Blue = manual/setup, Green = active/automatic)

• Standard tooling:

  • Single-piece sharp nose tool (long/profile parts, radius, hemming) – 42CrMo4 grinded material, 20° nose angle

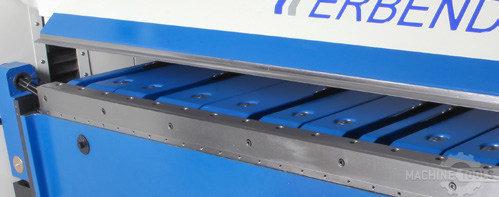

  • Folding beam tools: 42CrMo4 grinded, 2 sets (0.39” and 1” widths), segmented 0.78”–19.6”

  • Bottom beam tools: 42CrMo4 grinded, segmented 0.78”–19.6” widths

Spec Sheet

SPEC SHEET

• Model: MFB 3220

• Maximum sheet length: 10.49 ft (3220 mm)

• Maximum thickness (full length): 0.078” (14g) steel

• Materials supported: mild steel, stainless steel (0.048”/18g), aluminum (0.118”/11g)

• Clamping beam (Z Axis):

  • Opening height (no tools): 6.3 in (160 mm)

  • Clamping speed: 2.36 in/sec

• Folding beam (Y Axis):

  • Folding angle: 0–150°

  • Speed: 65°/sec

• Folding beam adjustment (A Axis): manual, height 3.1 in (80 mm)

• Back gauge system (X Axis):

  • Speed: 9.8 in/sec

  • Min/max gauging: 0.078”–39.37” (2–1000 mm)

• Clamping beam rotation (C Axis): rotational speed 20°/sec

• Dimensions (WxLxH): 98” x 187” x 82.67”

• Machine weight: 16,500 lbs
