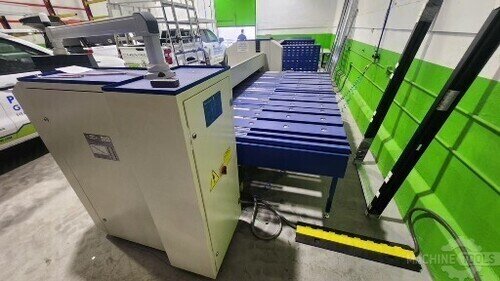

ERBEND MFB 3220
MAX SHEET LENGTH 3200 mm 126” MILD STEEL 2 mm 14g STAINLESS 1.2 mm 18g ALUMINIUM 3 mm MACHINE DIMENSIONS (W / L / H) 2200 x 4500 x 1900 mm 86.6” x 177” x 75” WEIGHT4500 kg 9,921 lbs. Opening height (without tools) 160 mm Motor Power (Sew Eurodrive AC) 1.5 kW Transmission system Eccentric Clamping speed 90 mm/sec Folding Beam (Y axis) Folding angle 0 – 150° Motor Power (Sew Eurodrive AC) 2.2 kW Folding Speed 80°/sec Folding Beam Height Adjustment (A1-A2 axis) Adjustment height 0 / -35 mm Control Manual Back gauge system ( X axis) Movement speed 300 mm/sec Motor Power (Servo) 400 W Positioning / repeatability accuracy +/- 0.1 mm
ERBEND MFB 3220
Description
Specifications
Specifications
Specifications
| Max Thickness | 0.078″ |
| Max Thickness (gauge) | 14 gauge |
| Overall Length | 10.49′ |
| Dimensions | 98″/175″/74″ |
| Weight | 10,500 lbs |

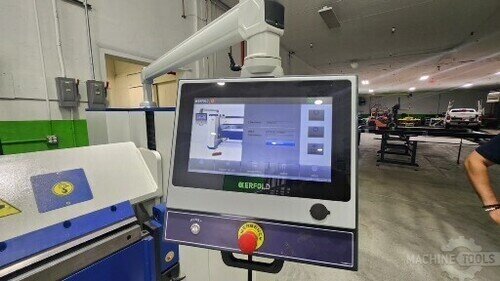

| Control | CNC (ERFOLD ADVANCED CNC Graphic Software on 15.6” Touch Screen control) |
Equipped With
Equipped With
Equipped With
- 90 mm segmented goats foot tools
- 10 & 25 mm sharp nose tools
- 2D Controller

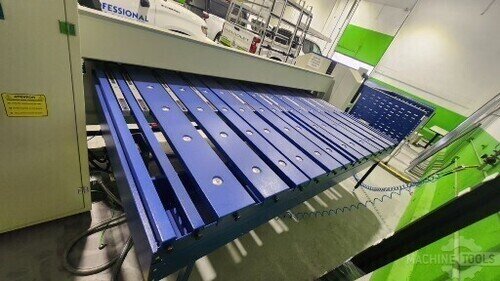

- 1000 mm backguage with roller balls
Spec Sheet
Spec Sheet
Spec Sheet
- Opening height (without tools) 160 mm
- Motor Power (Sew Eurodrive AC) 1.5 kW
- Transmission system Eccentric
- Clamping speed 90 mm/sec
- Folding Beam (Y axis) Folding angle 0 – 150°
- Motor Power (Sew Eurodrive AC) 2.2 kW
- Folding Speed 80°/sec
- Folding Beam Height Adjustment (A1-A2 axis)
- Adjustment height 0 / -35 mm
- Control Manual Back gauge system ( X axis)
- Movement speed 300 mm/sec Motor Power (Servo) 400 W
- Positioning / repeatability accuracy +/- 0.1 mm
