ERBEND MFA4225
ERBEND MFA4225
Description
Description
Specifications
Specifications
Specifications
| Max Thickness | 0.0984″ |
| Max Thickness (gauge) | 12 gauge |
| Overall Length | 13.78′ |
| Dimensions | 86.6” x 222.4” x 94.5” |
| Weight | 20,175 |
Equipped With
Equipped With
Equipped With
-
- Heavy duty fingers with machined bottom beam finger pockets

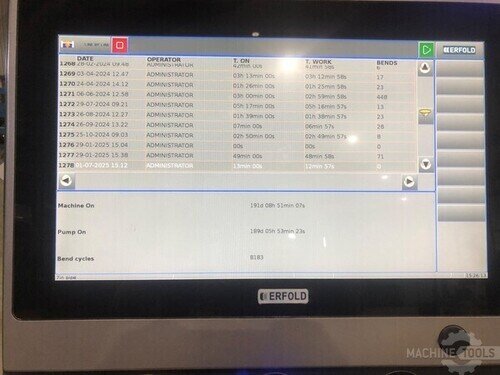

- ERFOLD Advanced 3D CNC Graphical Control
- Pneumatic Quick Clamp Tool system U shaped
- Backgauge table 120mm segmented goats foot tools
Spec Sheet
Spec Sheet
Spec Sheet
- Make Erbend
- Model MFA4225
- Year of MFG 2020 Working Length 4200mm (13.75’)
- Capacity 12g
- Upper Beam Stroke 135mm
- Folding beam type Combi
- Backgauge Depth U Shape
- Closed Hem Capacity 20g
- Electrics 3 phase
- Opening height (without tools) 250 mm
- Motor Power (Servo) 2 X 3,5 kW
- Transmission system Ballscrew spindle
- Clamping speed 65 mm
- Combi beam rotation (180°) time 10 sec
- Folding Beam (Y axis) Folding angle 0 – 150°
- Motor Power (Sew Eurodrive AC) 2 X 4 kW
- Folding Speed 70°/sec Folding Beam Height Adjustment
- ( A1-A2 axis) Adjustment height 0 to 80 mm
- Control Manual Back gauge system ( X axis)
- Movement speed 300 mm /sec
- Motor Power (Servo) 750 W
- Positioning / repeatability accuracy +/- 0,1 mm
