ERBEND EMS 3220

Brand – ERBEND
Model – EMS 3220
Condition – Used – Excellent

Like new 2024 Erbend EMS3220 Shear loaded with options.

Get a Quote

Categories: , Tag:

ERBEND EMS 3220

Description

Description

Brand – ERBEND
Model – EMS 3220
Condition – Used – Excellent

Specifications

Specifications

Specifications

Max Thickness 0.0747″
Max Thickness (gauge) 14 gauge
Length of Blade 10.5″
Dimensions 1950 X 3750 X 1600
Weight 4,431 lbs
Control CNC (NC)

Equipped With

Equipped With

Equipped With

  • 1000 MM SERVO MOTORIZED BACK GAUGE SYSTEM

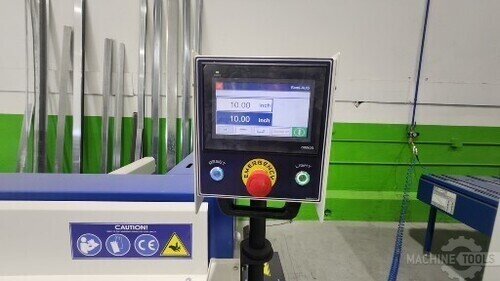

  • TOUCH-SCREEN NC CONTROL SYSTEM
  • FRICTION FREE GUILLOTINE BLADE GEOMETRY AND DUAL SIDED BLADES
  • SPRING LOADED HOLD-DOWN BAR AND POLYURETHANE MATERIAL CLAMPING SURFACE
  • FIXED SIDE SQUARING GAUGE AND STAINLESS FEEDING TABLE WITH RULERS ON EACH 500 MM LENGTH
  • RETRACTABLE FRONT SHEET SUPPORT BAR
  • LED ILLUMINATION OF CUTTING AREA AND CUTTING LINE
  • PNEUMATIC SHEET SUPPORT TO PROCESS REAR DROP OR FRONT DROP
  • S BLANK SHEET WAGON WITH WHEELS (1000 KG LOADING CAPACITY)
  • SIDE GAUGE EXTENSION TO 2 MT / 3 MT
  • VARIABLE ANGULAR CUTTING SUPPORT
  • CUTTING LINE LASER SIGHT

Spec Sheet

Spec Sheet

Spec Sheet

  • CUTTING LENGTH 3200mm/10.5’
  • CUT PER MINUTE 35
  • MOTOR POWER 4 KW
  • MILD STEEL 2 (14g) mm
  • STAINLESS 1.2 (18g) mm
  • ALUMINIUM 3 mm
  • DIMENSIONS (W X L X H) 1950 x 3750 x 1600 mm
    • 77” x 147” x 63”
  • WEIGHT 2010Kg 4,431 lbs
