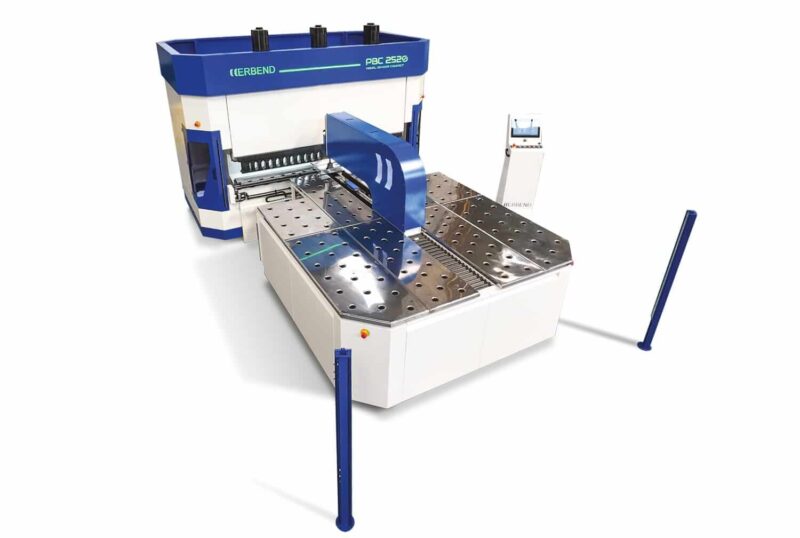

ERBEND AUTOMATIC PANEL BENDER COMPACT

Description

The Erbend PBC Series Automatic Panel Bender Compact delivers high-speed, precision panel bending in a compact footprint—ideal for fabricators looking to automate complex bending processes while maximizing floor space.

Designed with advanced CNC control, servo-driven manipulation, and multi-axis flexibility, the PBC Series enables consistent, repeatable bending for a wide range of materials and part geometries.

With up to 17 CNC-controlled axes, ultra-fast bend cycles, and automated material handling capabilities, this system is built for shops that demand speed, accuracy, and scalability.

Specifications

Machine Models

Key Features

• Fully automatic up/down bending capability (0–140°)
• High-speed bending cycle – 0.3 seconds per bend
• Advanced servo manipulator system for precise feeding and rotation
• Handles complex geometries, hemming, and radius bending
• 14–17 CNC axes for full process control

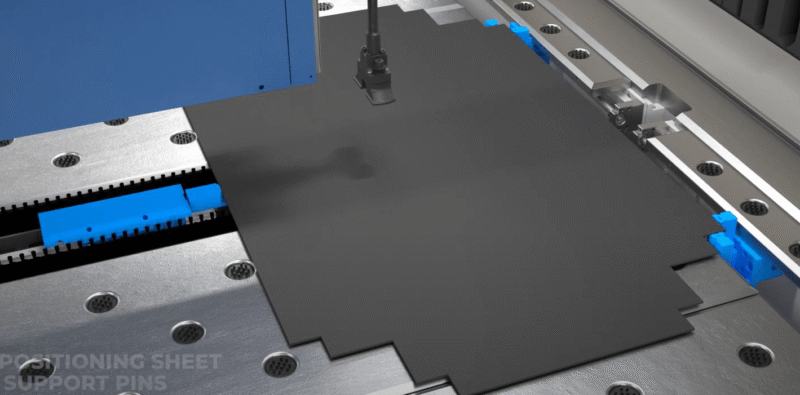

• 3-point squaring system for accurate sheet positioning
• Windows-based 3D graphical CNC control
• Compact footprint with high production output
• Ready for robotic automation integration

Optional Features

• 300 mm High Blank Holder Upgrade
• Auxiliary Bending Unit (S-Axis)
• CNC Motorized Crowning System
• Robotic Automation Integration
• Gantry Handling System

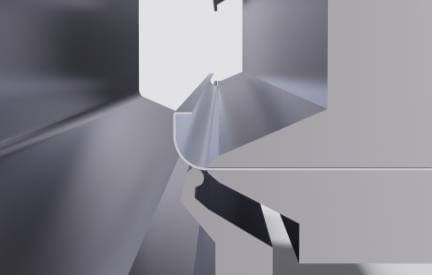

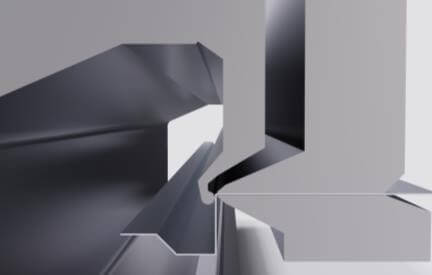

Bending Capabilities

• Up Bending (Positive)
• Down Bending (Negative)

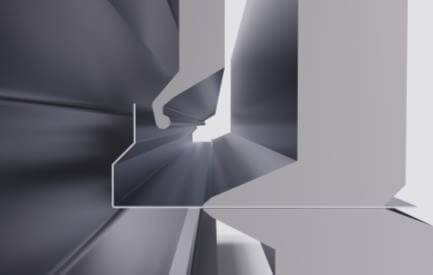

• Standard & Reverse Hemming
• Push Bending (Air Bending)
• Large Radius / Arc Bending

This flexibility allows fabricators to produce complex parts in a single setup, reducing handling and improving throughput.

Applications

• Electrical enclosures
• HVAC components
• Architectural panels
• Appliance manufacturing
• Precision sheet metal fabrication
• High-mix / low-volume production
• Automated production environments

Standard Configuration

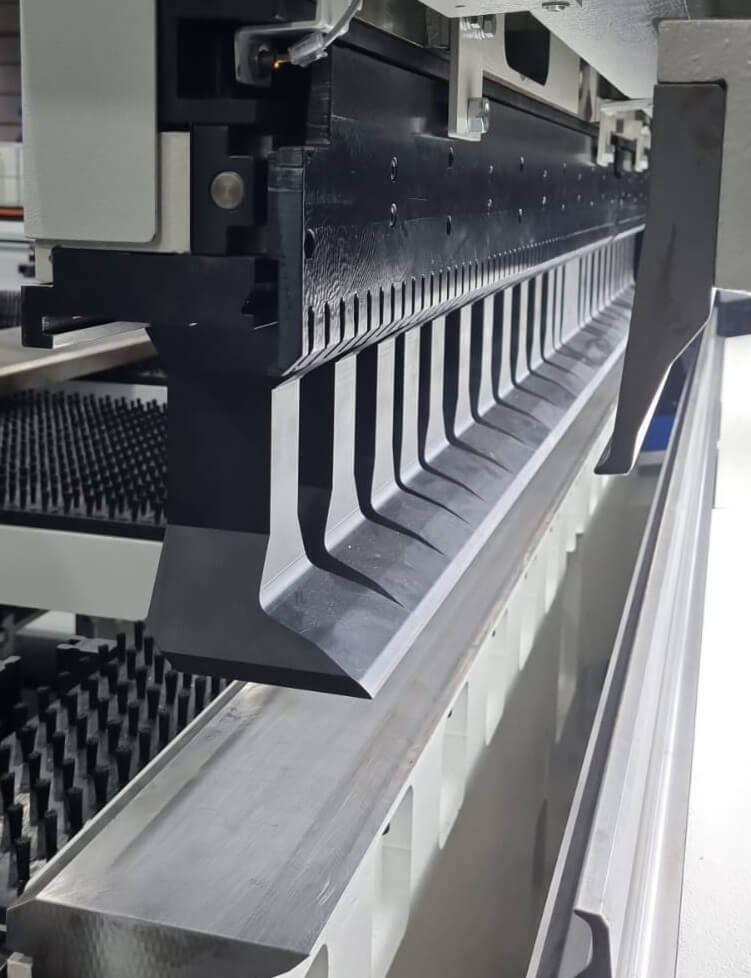

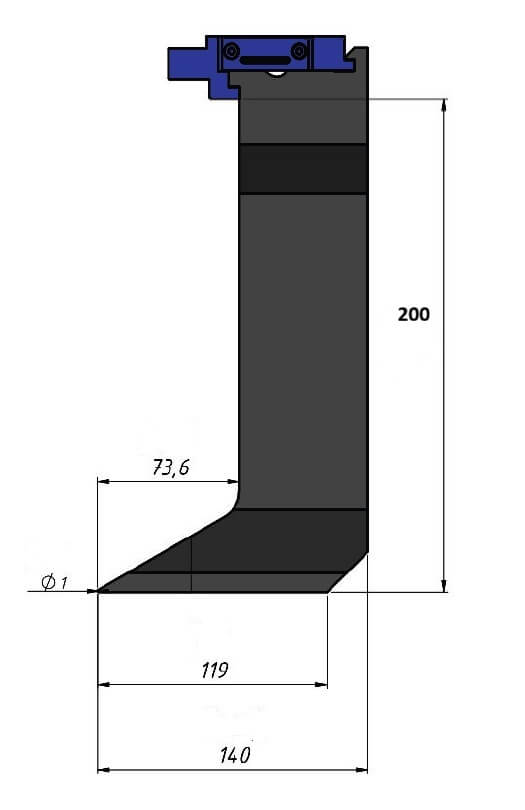

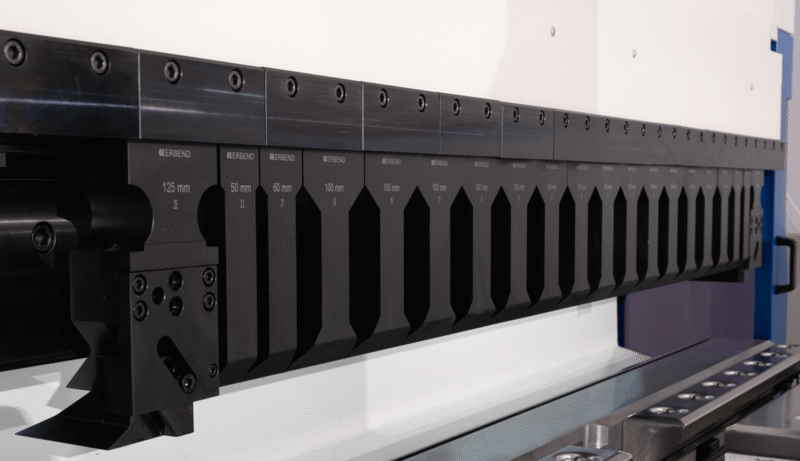

• Blank Holder Group with quick tool clamping
• Bending Group (Up/Down, Hemming, Radius, Air Bending)
• 3-Point Sheet Squaring System

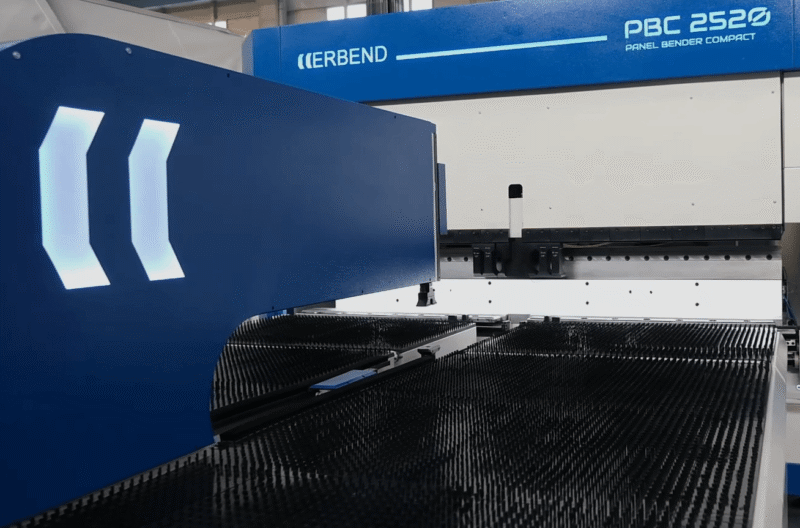

• Full Brush Support Table
• Servo Manipulator System
• ERFOLD PB CNC 3D Control Software
• CE Safety Light Barriers

Why Finance Your Equipment with Tech Financial?

Financing your equipment through Tech Financial unlocks a world of possibilities for your business. With flexible payment plans, tailored solutions, and quick credit approvals, you can preserve working capital while accessing the latest technology to stay competitive. Enjoy potential tax advantages, affordable rates, and a seamless application process designed to get you the equipment you need without delays. Tech Financial’s expertise and customer-focused approach make investing in your business’s future easier and more cost-effective than ever.

Ready to get started? Apply today and take the next step toward smarter financing!

Material Capacity

CNC Control Systems

The ERFOLD PB CNC 3D Control provides:

• 21” touchscreen interface
• Line-by-line or STEP file programming
• Full 3D simulation and collision detection
• Production scheduling and reporting
• QR/Barcode compatibility
• Automation-ready architecture
