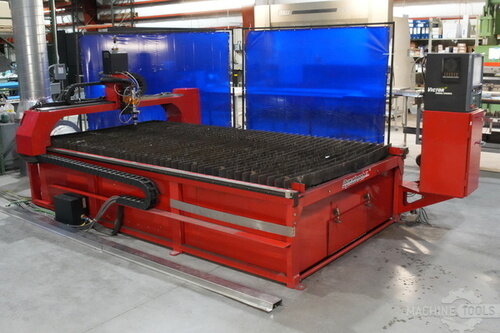

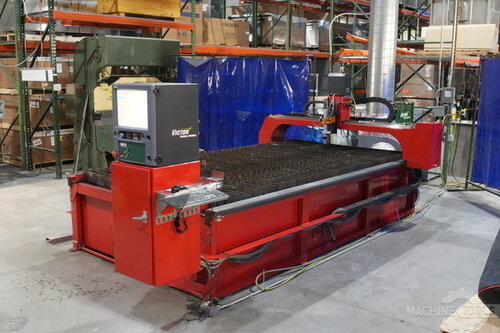

DYNATORCH XLY HF 5X10
Videos DYNATORCH XLY HF 5X10
DYNATORCH XLY HF 5X10
Description
Description
Specifications
Specifications
| Cut-Width | 5′ |
| Cut-Length | 10′ |
| Plasma Power | 100 a |
| # Plasma Torches | 1 |
| Cutting Speed | 400 ipm |
| Rapid Traverse Speed | 1400 ipm |

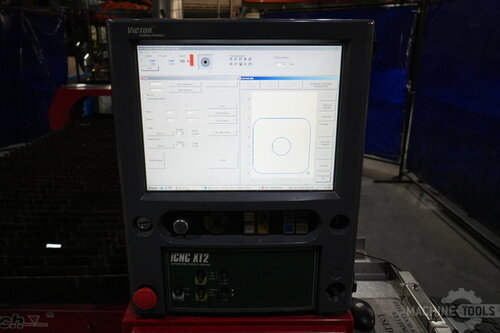

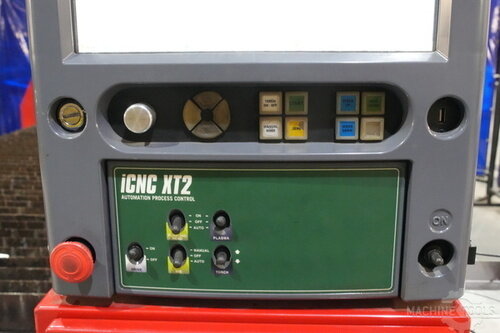

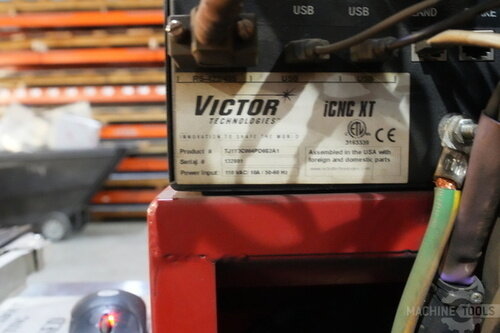

| Control | CNC (iCNC XT2 Automation Process Control) |
Equipped With
Equipped With
Equipped With
- XLY HF 5×10 – High Frequency System Includes:
- Brushless Yaskawa Servo Drive Motors
- Automatic Integrated Arc Voltage Torch Height Control
- Helical Planetary Gearboxes
- XLY Air Handler 5×10 – Downdraft Air Handler Includes:
- Powder Coated Finish
- Advanced Multi-Chamber Design
- Clean Out Door
- Pull-Out Clean Out Drawer
- Precision Ground Linear Rails & Bearings
- Dual Motor Drive X Axis
- Fiber Optic USB Communications
- Pneumatically Engaged Drives

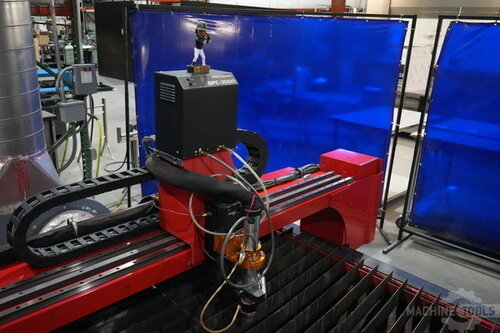

- Steel Gantry and Frame (Powder Coated Finish)
- Cutting Table with Slats
- Magnetic Breakaway Collision Protection
- Laser Locator – Software Controlled
- CNC Computer Workstation with Dell i5 Computer
- Dynatorch CNC Motion Software
- Extensive Parts Library
- High Frequency System Upgrades
- Sigma Nest
- Sigma Nest Companion Software Program
- Automatic TruShape Nesting
- Extensive Parts Library
- Automatic Path Generation
- Automatic NC Code Generation
- File Import:

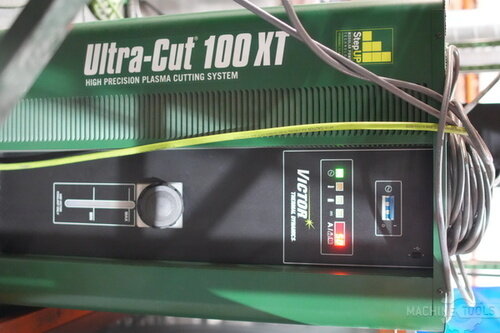

- DXF Thermal Dynamics UltraCut 100
- High Frequency, High Precision Plasma
- Excellent Dross-Free Cuts
- 100 AMPS @ 100% Duty Cycle

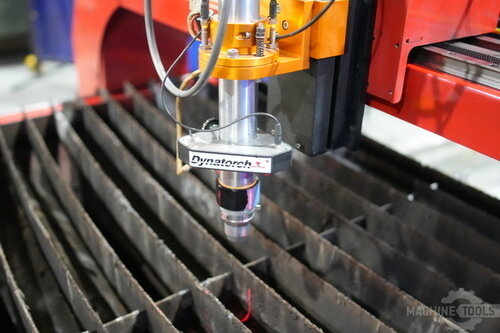

- Liquid Cooled Torch
- XT Torch Keyless Consumable Quick Change Cartridge
- Manual Multi-Gas Console: Air, O2, N2, H35
- Water Mist Secondary Process for Non-Ferrous Metals
- 1/2 Inch Production Pierce Capacity
- 5/8 Inch Maximum Pierce and Cut
- Thermal Software 1 & 2
- Thermal Dynamics Office Bundled Software Level 1 and Level 2 #15-3002
- Laser Locator
- Laser Locator
- Cross Hair Position Locator
- Controlled by Switch
