DENER DDM-5020
DENER DDM-5020
Description
Description
Specifications
Specifications
Specifications
| Tonnage | 55.116 T |
| Type | ELE |
| Overall Length | 6.69′ |
| Between Housings | 6.69′ |
| Stroke | 11.811″ |
| # Axis | 4 |
| Dimensions | (L, W, H) 124.8 in x 89 in x 98.4 in |
| Weight | 12,125lbs |
| Control | CNC (o ESA S 675 Controller) |
Equipped With
Equipped With
Equipped With

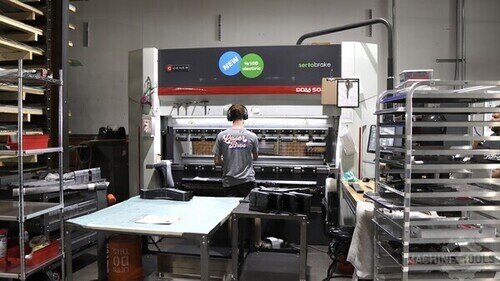

- DENER DDM 5020 SERVO Press Brake:
- MODEL DD-M-5020 : 6.8’ by 55 US Ton
- ESA S 675 Controller
- 4 Axis Back Guage (X, R, Z1, Z2)
- Ram Approach & Bending Movement Powered by (2) Servo Motors, Belts, Pulleys
- Ram Return, Spring Activated (Ram Goes Up in Failure)
- O-Frame Design offers full length bending & gauging
- No Oil, Tank, Piping, Valves, Maintenance
- 50% ENERGY SAVINGS of Hydraulic Brake
- Manual Clamping
- American Tyle Tooling (Top and Bottom)
- DSP Safety Light Curtain

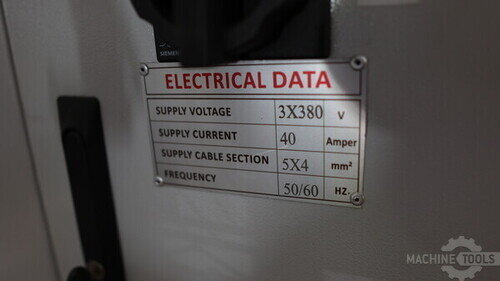

- 480V 3ph

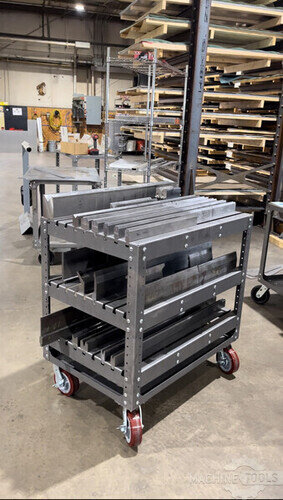

- Full Cart of Tooling Included:
- List of dies:
54″ @ 0.25″ acute
72″ @ 0.375″ acute
72″ @ 0.50″ acute
72″ @ 0.625″ acute
72″ @ 0.875″ acute
72″ @ 1″ 88deg
36″ @ 2″ 88deg
12″ @ 1.5″ 88deg - List of Punches:
90″ @ 0.032″ Radius arrow punch
36″ @ 0.040″ Radius Gooseneck punch
45″ @ 0.125″ Radius arrow punch
32″ @ 0.188″ Radius arrow punch
32″ @ 0.25″ Radius arrow punch
Spec Sheet
Spec Sheet
Spec Sheet
| Specification | Metric | Imperial (Approx.) |
|---|---|---|
| Model | DD-M 5020 | DD-M 5020 |
| Bending Length | 2040 mm | 80.3 in (6.7 ft) |
| Pressure Force | 50 tons | 50 tons |
| Max Stroke | 300 mm | 11.8 in |
| Distance Between Tables | 590 mm | 23.2 in |
| Approaching Speed | 150 mm/s | 5.9 in/s |
| Bending Speed | 20 mm/s | 0.79 in/s |
| Return Speed | 150 mm/s | 5.9 in/s |
| Main Motor Power | 11 kW | 14.75 HP |
| Weight | 5500 kg | 12,125 lbs |
| Overall Length (L) | 3170 mm | 124.8 in (10.4 ft) |
| Width (W) | 2260 mm | 89 in |
| Height (H) | 2500 mm | 98.4 in (8.2 ft) |
