BODOR P3015
BODOR P3015
Description
Description
Specifications
Specifications
Specifications
Sheet-W | 59.055″ |
Sheet-L | 118.11″ |
Wattage | 12000 kw |
IPM | 7874 ipm |
Dimensions | 391.2″ x 120″ x 90″ |
Weight | 19,000 lbs |
Control | CNC (Bodor Thinker 3.0) |
Equipped With
Equipped With
Equipped With

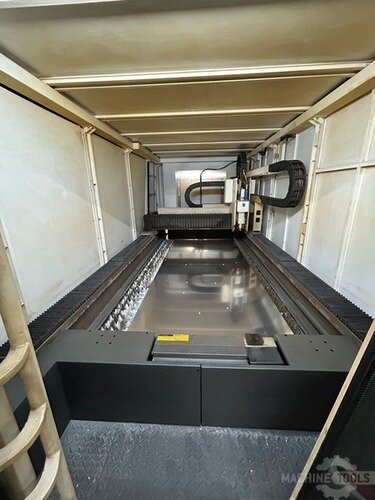

- 5′ x 10′ shuttle table
- 12kw Laser Resonator
- Bodor Genius Auto focus laser head

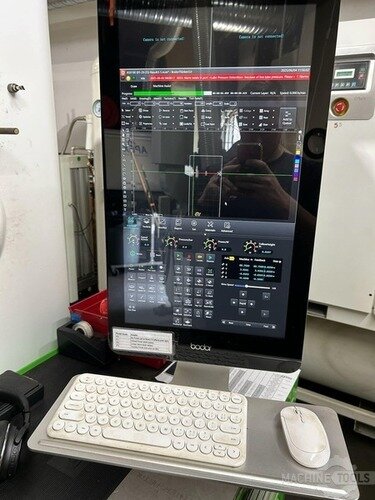

- Bodor Thinker 3.0 control system
- Scan cutting function

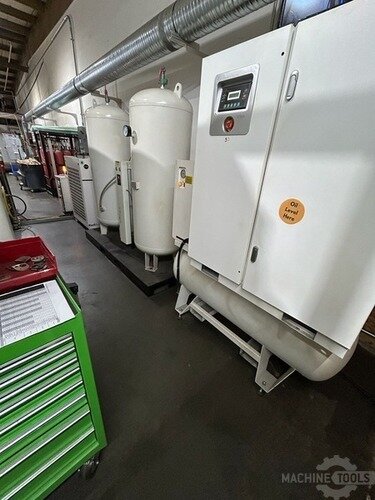

- Air Compressor
- Light Curtain
Spec Sheet
Spec Sheet
Spec Sheet
- Working Area: 60″ x 120″
- Sheet-W: 60″
- Sheet-L: 120″
- Z-axis Travel: 12.4″
- Max linkage speed: 7874 ipm
- Max. Acceleration: 4.0G
- Positioning Accuracy: ±0.05 mm or +/- 0.0011968″
- Repositioning Accuracy: ±0.02 mm or +/- 0.000787″
- Maximum Sheet Thickness (Steel): 40 mm/1.57″
- Maximum Cutting Thickness (Batch Processing): Carbon Steel: up to 40mm/1.57″
- Stainless Steel: up to 40mm/1.57″
- Aluminum: up to 30mm/1.18″
- Brass: up to 18mm/0.71″
- Max. Load Capacity Per Table: 2,403lbs
- Equipped With:
- 5′ x 10′ shuttle table
- 12kw Laser Resonator
- Bodor Genius Auto focus laser head
- Bodor Thinker 3.0 control system
- Scan cutting function
- Air Compressor
- Light Curtain
