APEX EZ SANDER MACHINE

Metal Widebelt EZ Sander

Deburring, Grinding, Slag/Dross Removal, Straight Grain Finishing

The Metalworking Widebelt EZ Sander is a cost-effective way to finally upgrade your deburring and finishing operations, moving away from time-consuming hand grinding. With just a quick change of the abrasive belt, this compact machine can remove slag/dross, grind vertical burrs, or straight grain finishing (including some mill scale removal).

The EZ Sander was developed to fit the needs of both small metalworking shops, as well as, large production facilities looking for an easy way to run small projects “off-line” from their main production flow. With a small footprint and the ability to mount on casters, this machine is portable enough to fit almost any shop. Don’t let the small size fool you, the EZ Sander is loaded with features and is heavy-duty enough to provide years of dependable, consistent, labor saving production.

Get a Quote

Videos APEX EZ SANDER MACHINE

APEX EZ SANDER MACHINE

Description

Description

Metal Widebelt EZ Sander

Deburring, Grinding, Slag/Dross Removal, Straight Grain Finishing

The Metalworking Widebelt EZ Sander is a cost-effective way to finally upgrade your deburring and finishing operations, moving away from time-consuming hand grinding. With just a quick change of the abrasive belt, this compact machine can remove slag/dross, grind vertical burrs, or straight grain finishing (including some mill scale removal).

The EZ Sander was developed to fit the needs of both small metalworking shops, as well as, large production facilities looking for an easy way to run small projects “off-line” from their main production flow. With a small footprint and the ability to mount on casters, this machine is portable enough to fit almost any shop. Don’t let the small size fool you, the EZ Sander is loaded with features and is heavy-duty enough to provide years of dependable, consistent, labor saving production.

Machine Features

Machine Features

MACHINE FEATURES

  • 36″ wide part capacity
  • 37″ x 60″ abrasive belts

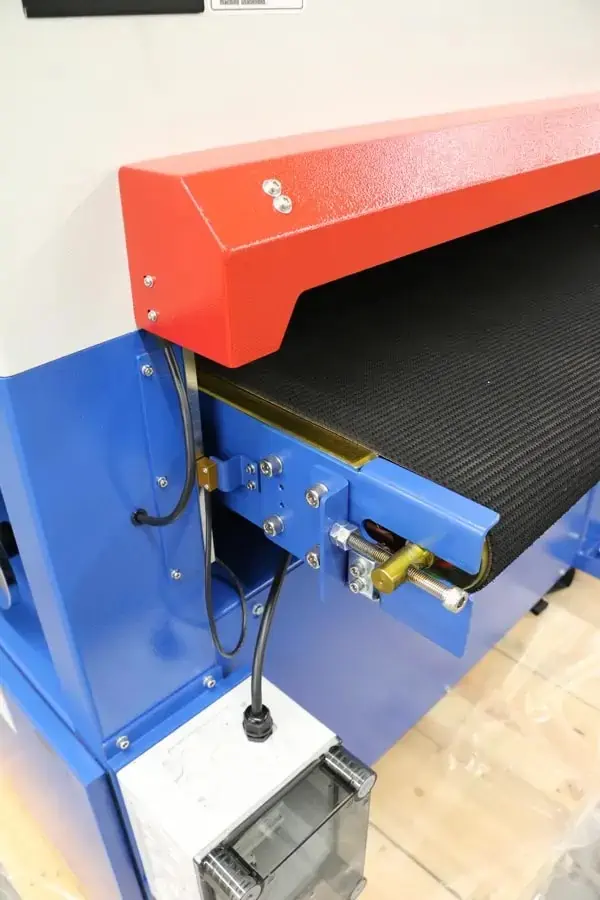

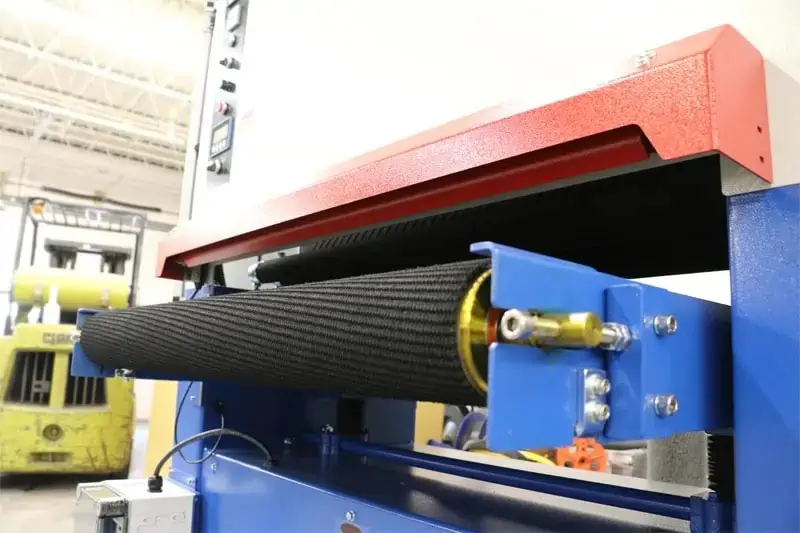

  • Variable speed conveyor at 5-25 fpm
  • 5″ bed opening with motorized lift

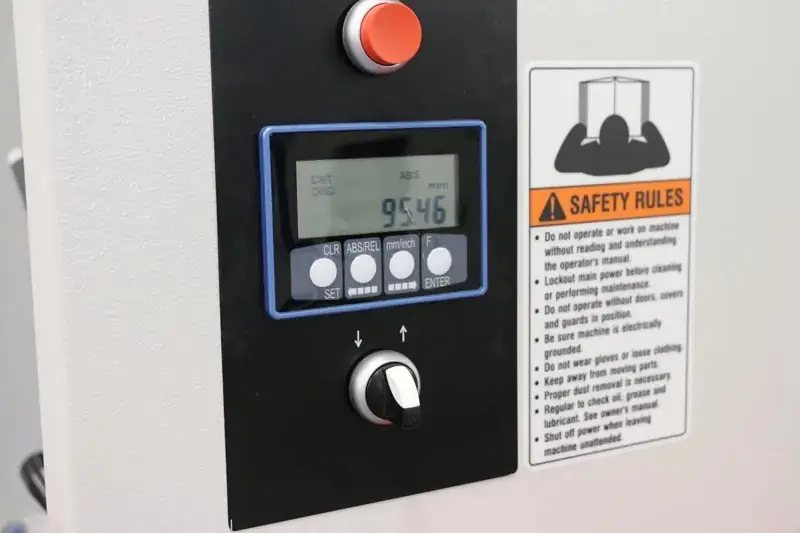

  • Digital thickness readout for conveyor height

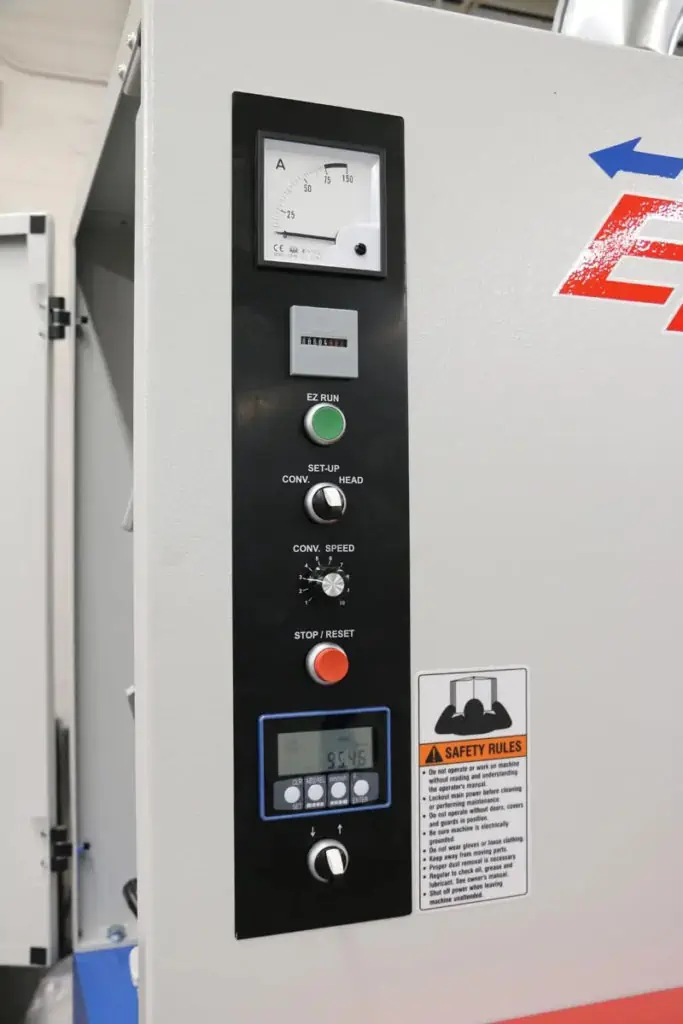

  • Control panel with motor load meter, hour meter, and digital readout

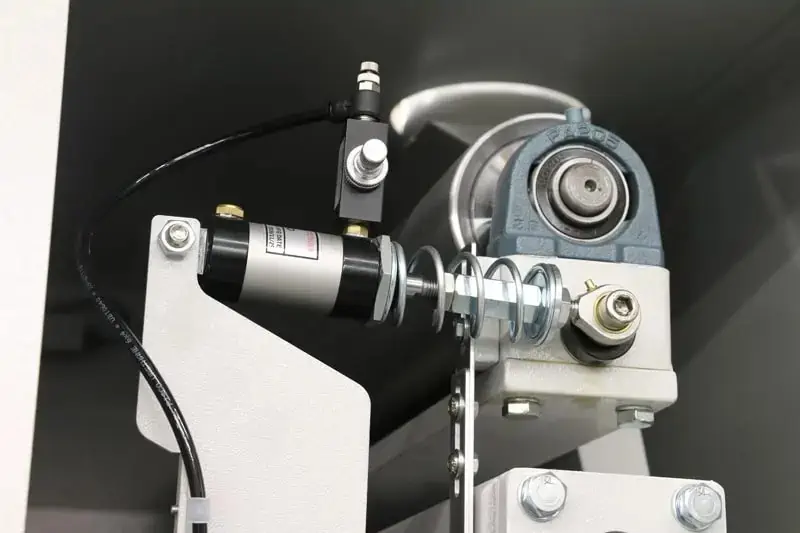

  • Electronic abrasive belt tracking
  • Pneumatic abrasive tensioning
  • Air operated disc brake

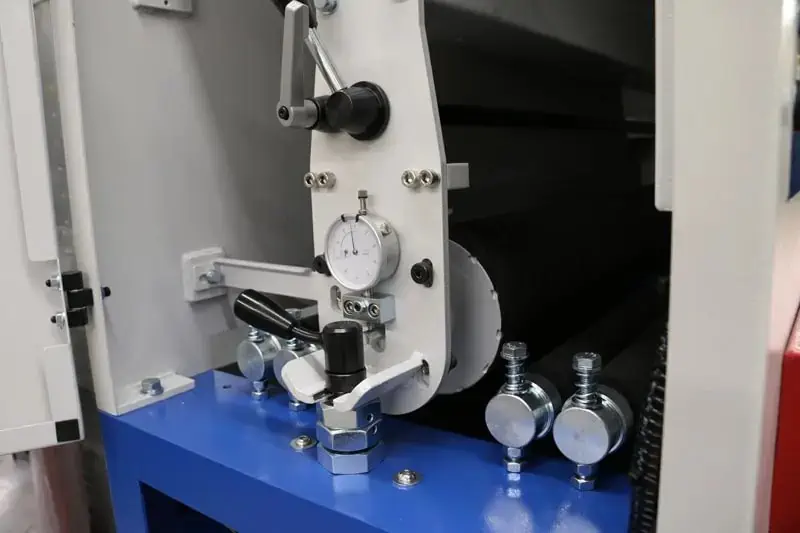

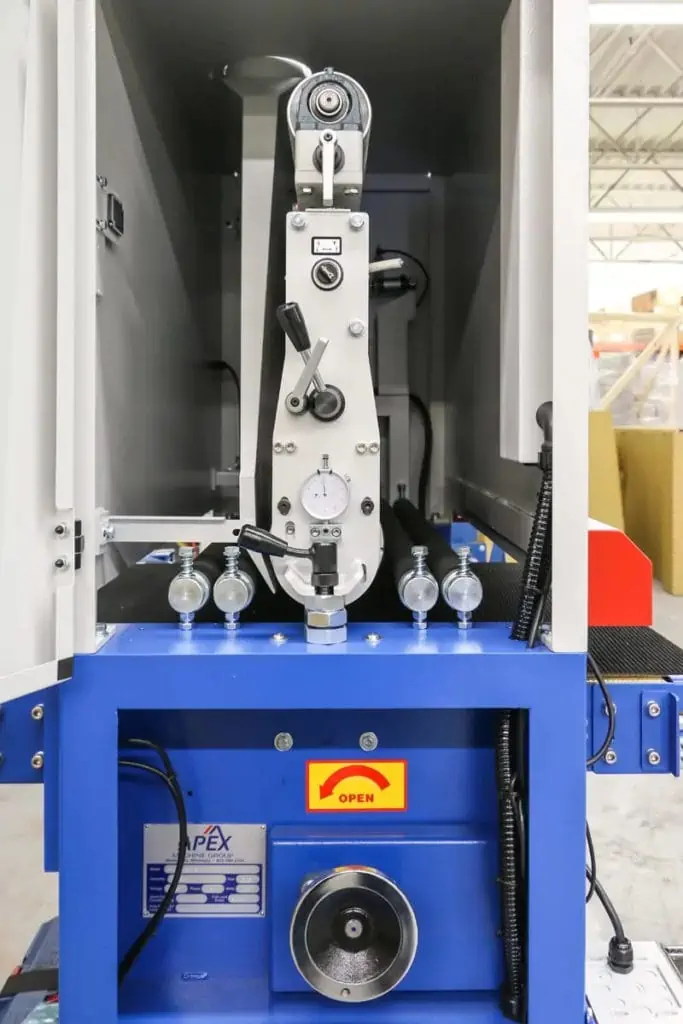

  • 6″ diameter cam adjustable contact drum with dial indicator
  • Heavy-duty welded frame
  • Casters for portability
  • Optional portable 5 HP wet dust collector

Machine Specifications

Machine Specifications

MACHINE SPECIFICATIONS

SPECIFICATION                       DESCRIPTION

Abrasive Belt Size                    37″ * 60″

Motor Size                                 10 HP or 15 HP

Number of Heads                     1

Conveyor Opening                    0-5″

Floor to Table Height               31-3/8″ to 37-3/8″

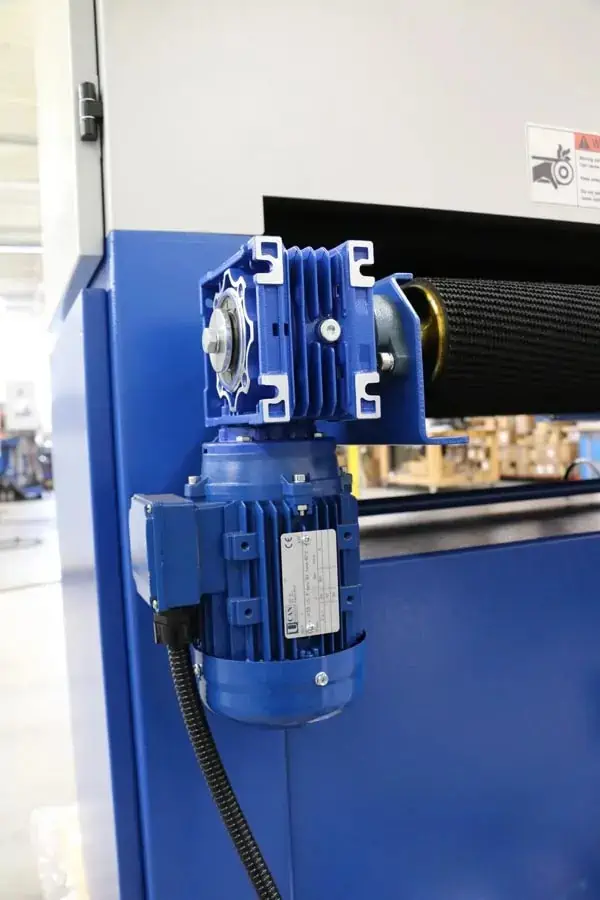

Conveyor Drive Motor              1 HP

Feed Speed                                5-25 FPM

Shipping Weight                        2,150 Lbs.



Machine Part Processing Limitations

Machine Part Processing Limitations

MACHINE PART PROCESSING LIMITATIONS

Max Width                             37″

Max Thickness                      5″

Min. Length                           10″

* Minimum part length is approximate and can vary by application or optional features. Please contact us to discuss your specific application needs.
