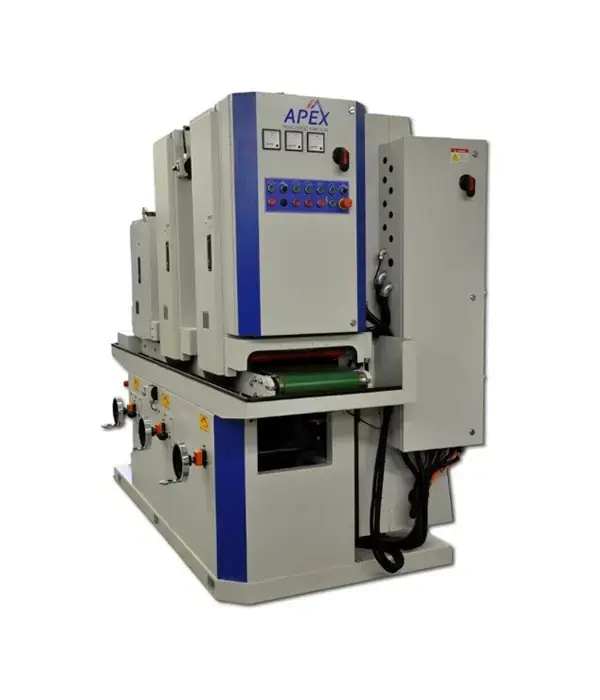

Apex 1000 Series Dry Metal Machines

Description

Deburring, Grinding, Edge Radiusing

The 1000-series of machines are built in a heavy duty construction with a smaller footprint designed to accommodate a job shop with various applications such as deburring, dross removal, calibrating/dimensioning, edge radiusing or finishing. This series of machine can be built in both top and bottom configurations.

Machine Features

MACHINE FEATURES

• Machines built in widths from 13″ to 43″ and multiple head frames
• Dual infeed and outfeed pinch rolls to ensure parts feed through machine properly
• One- to three-head configurations with drum, brush, disc or combination drum/brush/disc heads
• Machines built in both top and bottom configurations
• Individual cam adjustment down to .001″ per head for accurate finishing
• Air-loaded cylinder for automated belt tensioning
• Automatic abrasive belt tracking to ensure proper belt alignment during operation

Machine Specifications

MACHINE SPECIFICATIONS

SPECIFICATION                     DESCRIPTION

Belt Width                                13′ to 43′

Motor Size                               5 HP to 30 HP

Number of Heads                   1 to 3

Types of Heads                       Drum, Scotch-Brite, Brush and Disc
Available

Drum Size                                 100 mm to 200 mm

Machine                                    Top-Only, Bottom-Only, or Top/Bottom Configuration
Configuration

Feed Motor                               1 HP to 3 HP

Machine Videos

MACHINE VIDEOS

1037M-DSc With Sticky Belt and Conveyor System

Rust Removal, Deburring, and Edge Radius in a Single Pass of a Carbon Steel Part Using an Apex 37″ Belt/Disc Machine

1375M-DSc

Deburr and Edge Radius of Small Parts Using an Apex 13″ Wide Belt / Disc Machine Equipped with a Sticky Conveyor Belt and Cleaning System

1037M-DS

Sheet Metal Deburring of Laser Cut Holes and Cutouts With PVC Coating In Place
