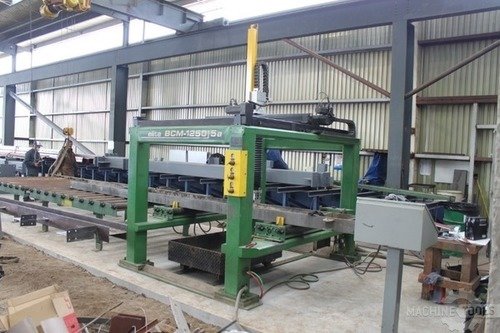

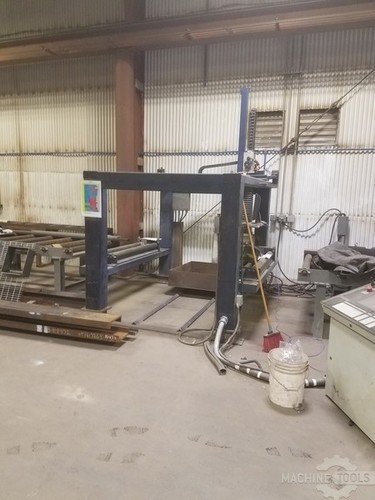

AMTEK BC4048-5STP

Description

Specifications

SPECIFICATIONS

Equipped With

EQUIPPED WITH

• One (1) Oxy-Fuel Cutting Torch

• Automatic Infeed & Outfeed Material Clamping System

• Automatic Ignition System

• Harris Compatible Cutting Tips

• Overhead Precision X-Y Slide Torch System (THK Guide)

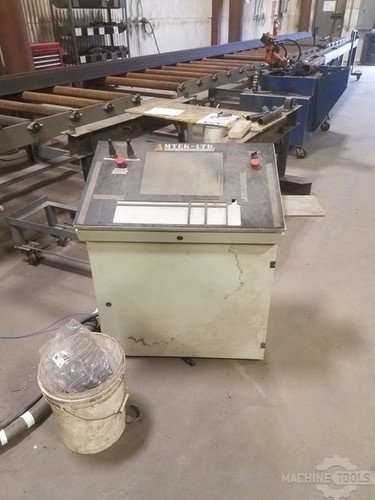

• Independent Movable Control Console (NEMA 12 Cabinet)

• Pentium PC with Flat Screen Monitor

• Membrane Silicone Keyboard & Optical Mouse

• Remote Pendant Control

• Laser Light for Beam End & Layout Positioning

• Adjustable Air Cylinder Material Clamps

• Large 45″ W × 42″ L × 30″ H Cutting Window

• Movable Scrap Cart for Easy Clean-Out

Includes:

• Machine

• Two (2) Days Operator Training

Customer Responsible For:

• Customs Clearance

• Taxes

• Travel Expenses & Hotel Accommodation

Optional:

• DSTV Import Software (compatible with SDS2, X-Steel, Stru-CAD)

Spec Sheet

SPEC SHEET

Cutting Capability

• 5-Axis Oxy-Fuel Structural Cutting

• Cuts Top Flange, Bottom Flange, and Web

• Maximum Beam Width: 40″

• Minimum Beam Width: 3″

• Maximum Flange Height: 20″

• Rat Hole Distance to Flange: 3/16″

Notching / Blocking Capacity

• Maximum Notch Depth: 40″

• Maximum Notch Length: 40″

• Maximum Block Depth: 40″

• Maximum Block Length: 40″

Performance

• Cutting Accuracy: ±1/16″

• Torch Speed: 0 – 40 IPM

Electrical

• Amps Required: 30 A

• Operating Voltage: 110V / 60 Hz

Machine Dimensions

• Length: 82″

• Width: 94″

• Height: 84″

• Minimum Conveyor Height: 28″

Weight

• Machine Weight: 2,500 lbs (Net)
