AMTEK APC1200

Brand – AMTEK
Model – APC1200
Type – Beam Coping Machines
Year – 2024
Condition – Used – Excellent

Get a Quote

Categories: , Tags: ,

Videos AMTEK APC1200

AMTEK APC1200

Description

Description

This heavy-duty beam coping machine is designed for precision cutting, beveling, and shaping of steel profiles. Its full-stroke hydraulic clamps and powered lift rollers ensure smooth material handling, while the advanced Koike and Hypertherm cutting torches provide high-quality results on mild steel, stainless, and aluminum. The machine supports large and custom-length heavy-duty roller conveyors, cross transfer tables, and a heavy-duty beam rotator set for maximum efficiency. Integrated measurement systems and Windows-based CNC control allow for automated programming, flange and web detection, and precise material positioning. Designed with operator safety in mind, all flame-cutting components are fully protected, and the system includes emergency stop features, LED indicators, and wireless control for material handling.

Specifications

Specifications

SPECIFICATIONS

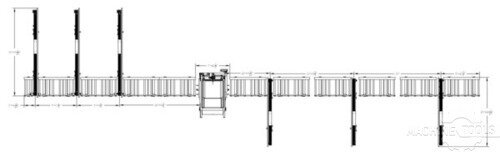

Dimensions 120ft by 40ft x 12ft
Control CNC (CNC CONTROL)

Equipped With

Equipped With

EQUIPPED WITH

  • AMTEK APC1200 Plasma

  • Fiber Etching Raycus 50W

  • Measurement MD60 system (up to 60 ft, integrated with conveyors)

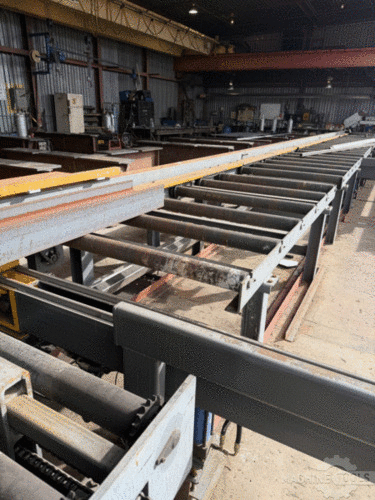

  • RC6 – 100”, 6-Roller, 44” Wide Heavy Duty Powered Roller Conveyors (1000 lbs per foot)

  • RC2 – Double 44” Wide Heavy Duty Powered Roller Conveyors (1000 lbs per foot)

  • CF (12’3″) Infeed Conveyor

  • CF (20′-2 1/6″) Infeed Conveyor

  • 20 HP Hydraulic Power Unit

  • Hydraulic Kit (covers 10% of Material Handling at list)

  • Wireless control with electrical cabinet for material handling

  • Koike / Hypertherm Torch integration for plasma and oxy-fuel cutting

  • Material zero start position detection and flange/web offset detection

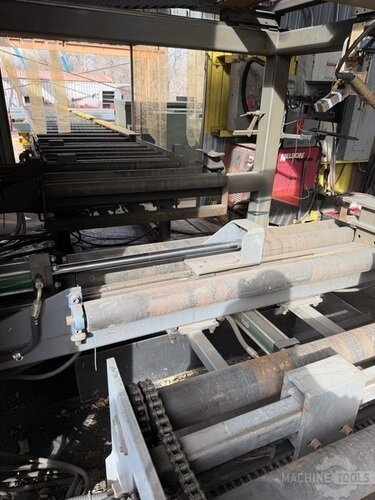

  • Full stroke hydraulic clamps (manual / automatic operation)

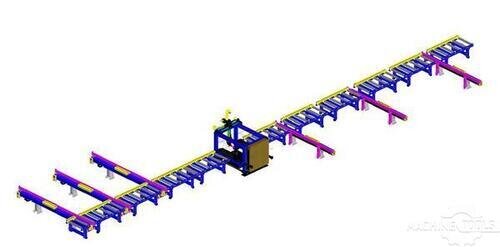

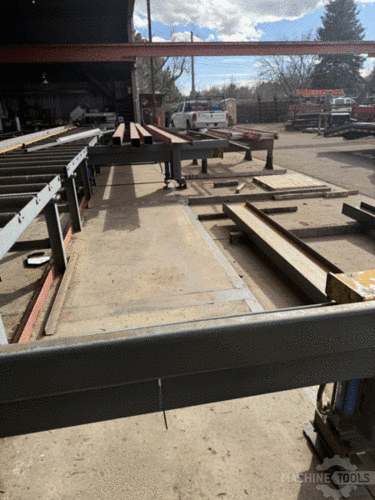

  • Heavy-duty powered roller conveyors and cross transfer tables (custom lengths, up to 8,000 lbs capacity)

  • Beam rotator set (up to 8,000 lbs per unit / 16,000 lbs per set)

  • 5-axis cutting and beveling capability (X, Y, Z, W, V)

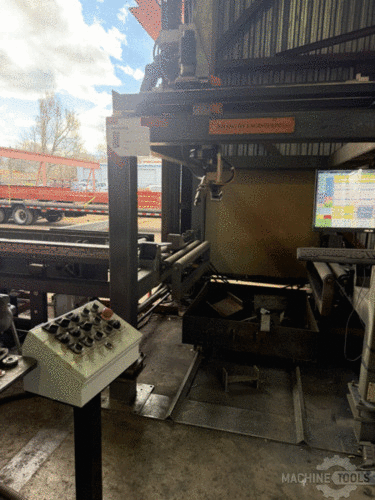

  • LED indicators, start/stop/pause/retrace/resume controls

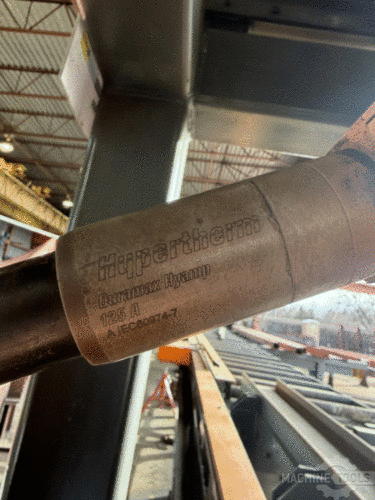

  • Plasma Torch: Hypertherm PowerMax 125 Mini, 1” max piercing on mild steel

  • Fiber Optic Cutting Head with Raycus 50W Resonator, 8” focal length

  • Yaskawa servo drives and motors with brakes on every axis

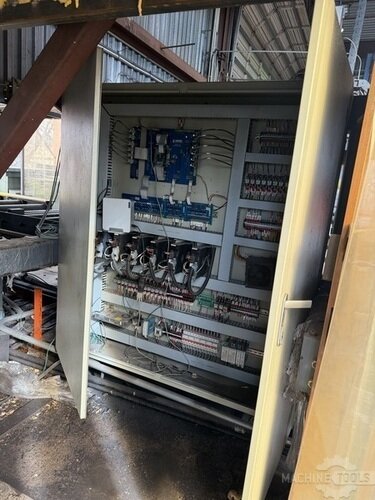

  • Full electrical circuit protection (main power input, emergency stop, clamps manual control)
