CH BOOSTER SERIES HYDRAULIC TUBE BENDING MACHINE
The AMOB CH Booster Series Hydraulic Tube Bending Machines are engineered for demanding applications requiring tight-radius bending, reduced ovality, and superior tube quality. Designed for industries such as heat exchangers, HVAC, refrigeration, and ventilation, these advanced hydraulic benders combine booster-assisted bending technology with exceptional precision and production flexibility.
Capable of processing tubes up to 270 mm OD, the CH Booster Series delivers high-performance bending with programmable booster control, optional integrated cutting systems, mandrel lubrication, and advanced automation features for efficient, high-quality tube fabrication.
CH BOOSTER SERIES HYDRAULIC TUBE BENDING MACHINE
Description
Description
The AMOB CH Booster Series Hydraulic Tube Bending Machines are designed to provide exceptional bending performance for industries requiring precise tube forming with minimal deformation and superior part quality. Ideal for applications including heat exchangers, air conditioning, refrigeration, and ventilation systems, these machines utilize an integrated booster mechanism positioned parallel to the tube centerline to improve material flow during bending and achieve tighter radii with reduced wall thinning and ovality.
The programmable booster system allows operators to dynamically control booster behavior throughout the bending cycle from 0° to 192°, delivering exceptional flexibility for complex bending applications. Combined with specially designed tooling, the CH Booster Series can perform mandrel-less bends on tight CLR/OD ratios greater than 0.8D while maintaining outstanding tube integrity and surface quality.

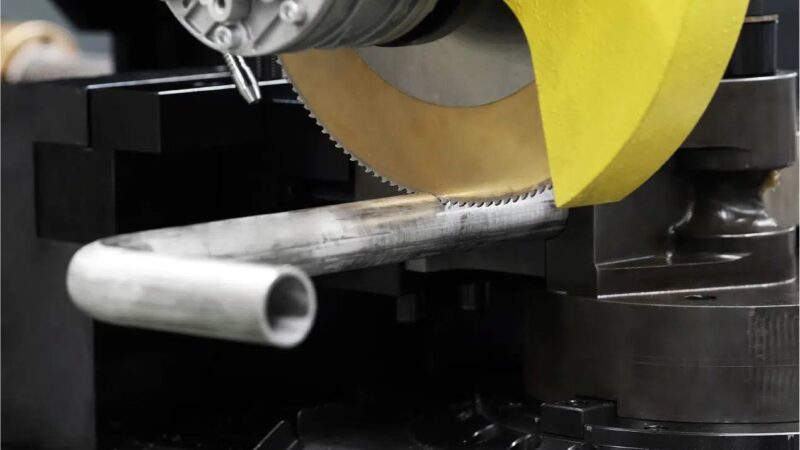

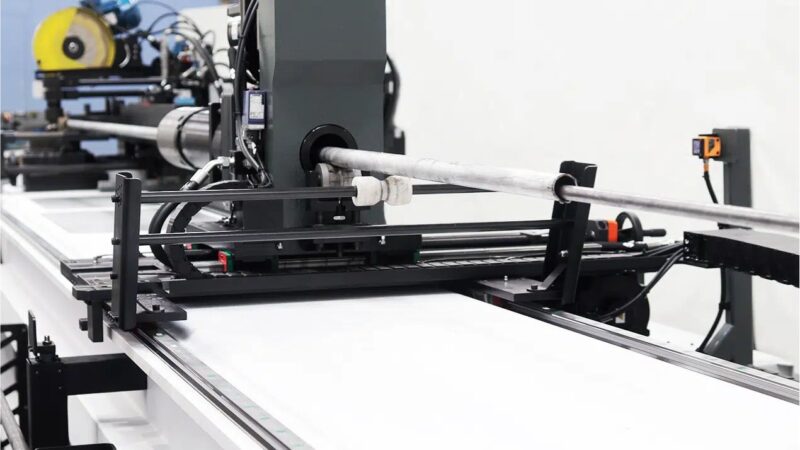

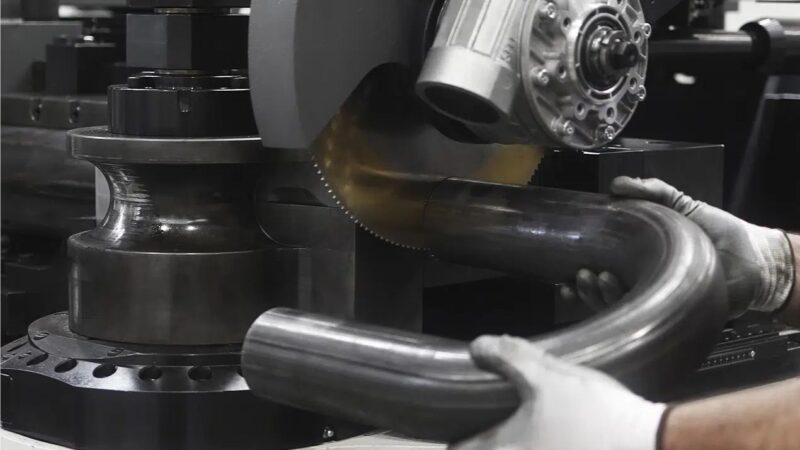

Designed for productivity and automation, the CH Booster Series can be equipped with integrated cutting systems, semi-automatic loading systems, mandrel lubrication systems, vertical split die systems, laser reference systems, rotary clamp die systems, and centralized lubrication systems. These features help reduce secondary operations such as welding, inspection, and cutting while improving overall production efficiency and repeatability in demanding fabrication environments.
Spec Sheet
Spec Sheet
SPEC SHEET
- Machine Type: Hydraulic Tube Bending Machine
- Tube Capacity: Up to 270 mm OD
- Machine Configuration: Single-Stack Design
- Booster Control Range: 0° – 192°
- Radius Capability: Greater Than 0.8D CLR/OD Ratios
- Bending Capability: Tight Radius & Bend-on-Bend Applications
- Lubrication System: Automatic Centralized Lubrication
- Mandrel System: Programmable Mandrel Lubrication
- Simulation & Diagnostics: Electronic Motion Control Monitoring
- Optional Automation: Loading, Cutting & Laser Referencing Systems
AVAILABLE MODELS
- CH 80 — Up to 80 mm
- CH 120 — Up to 120 mm
- CH 170 — Up to 170 mm
- CH 220 — Up to 220 mm
- CH 270 — Up to 270 mm
Equipped With
Equipped With
EQUIPPED WITH
- Hydraulic Booster Tube Bending System
- Integrated Booster Mechanism
- Secondary Clamp System
- Electronic Motion Control Monitoring
- Programmable Booster Control
- Automatic Centralized Lubrication
- Mandrel Lubrication System
- Rotary Clamp Die System
- Heavy-Duty Machine Construction
- Single-Stack Bending Configuration
Key Features
Key Features
KEY FEATURES
- Designed for HVAC, Refrigeration & Heat Exchanger Applications
- Processes Tubes Up to 270 mm OD
- Booster-Assisted Tight Radius Bending
- Reduced Ovality & Wall Thickness Loss
- Performs Mandrel-Less Bending on Tight CLR Ratios
- Dynamic Booster Control From 0° to 192°
- High Rigidity & Structural Stability

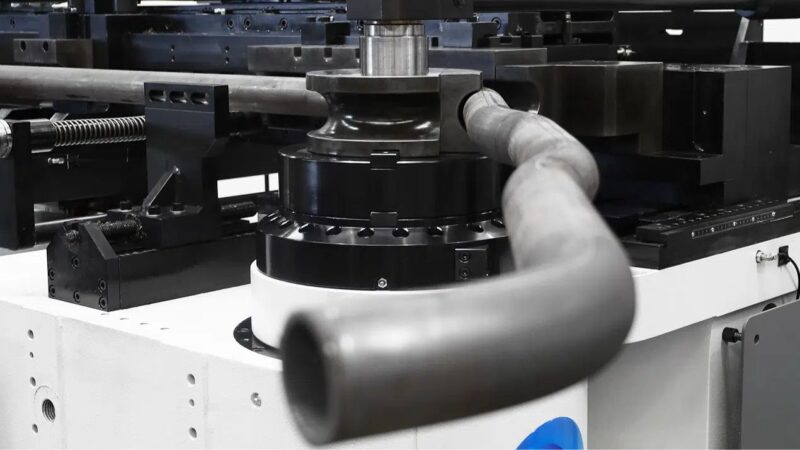

- Bend-on-Bend Capability With Rotary Clamp Die System
- Improved Production Efficiency & Repeatability
- Optional Integrated Cutting Systems
- Optional Semi-Automatic Loading Systems
- Optional Vertical Split Die System
- Optional Laser Reference System
- Programmable Mandrel Lubrication System
- Automatic Centralized Lubrication
- Real-Time Machine Monitoring & Diagnostics
