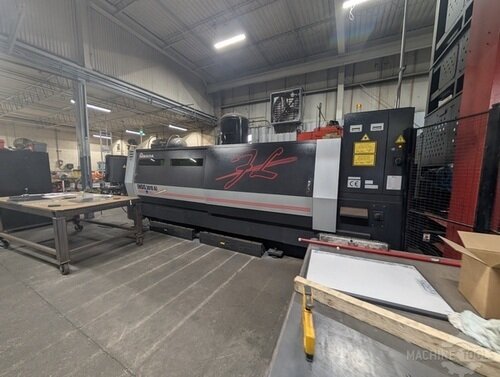

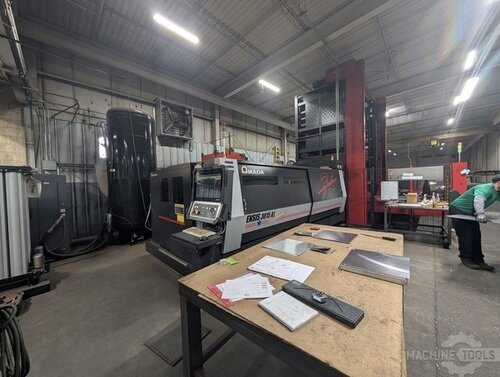

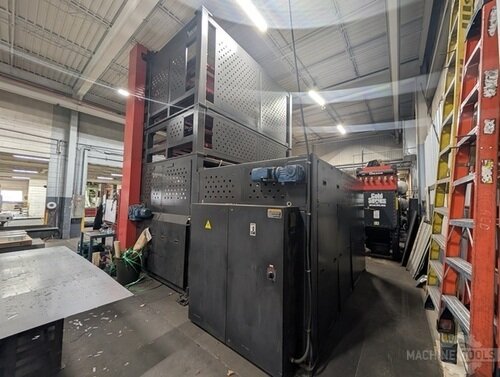

AMADA ENSIS 3015 AJ FIBER

Description

Specifications

SPECIFICATIONS

Equipped With

EQUIPPED WITH

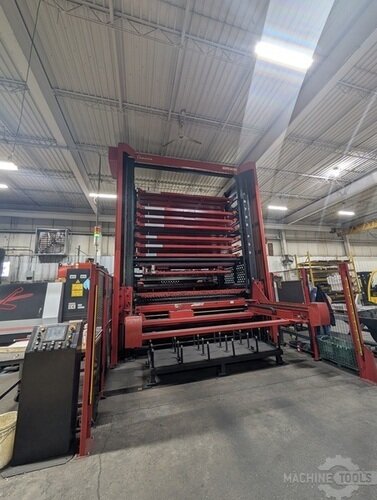

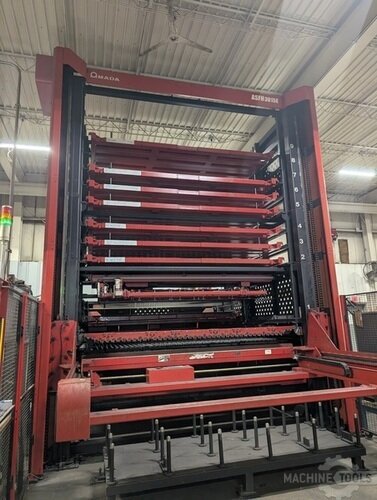

• ASFH3015E – High Speed Pallet Changer (9 Stations)

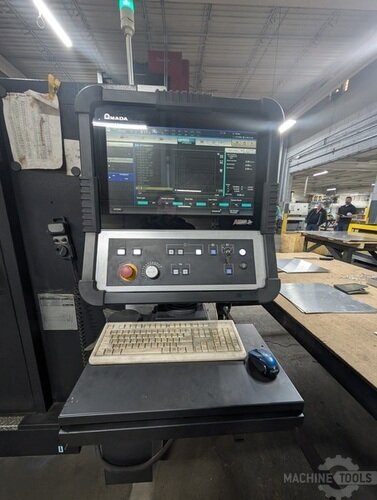

• AMNC 3i Control
• Amada Ensis 2000 – 2kW Resonator

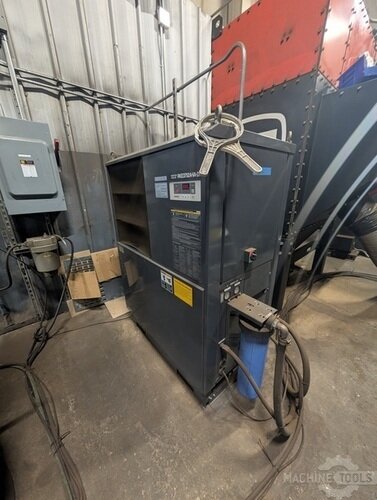

• Orion RKE3752A-VA-D Chiller

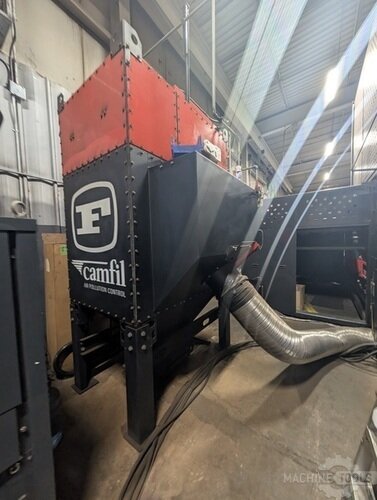

• Farr Gold Series Dust Collector

Spec Sheet

SPEC SHEET

Motion Package

• Travel Method: Stationary table; X, Y, and Z axis movement for cutting head

• Control Method: X, Y, and Z simultaneous 3-axis control

• Drive Motors: Fanuc AC Servo motors

• Maximum Sheet Size (X, Y): 120″ x 60″

• Maximum Axis Travel (X, Y, Z): 121″ x 61″ x 3.93″

• Maximum Positioning Speed (X, Y):

  • Per axis: 4,724 in/min

  • 45° vector: 6,693 in/min

• Maximum Speed Z-Axis: 4,724 in/min

• Repeatability: ±0.0002″

• Maximum Material Weight: 2,000 lbs

• Maximum Material Thickness:

  • Mild Steel: 0.875″

  • Stainless Steel: 0.375″

  • Aluminum: 0.312″

• Assist Gas: 4 ports with NC pressure control

• Electrical Requirements: 200V, 3-phase, 60 Hz

Fiber Laser Resonator (Engine)

• Model: AJ2000 with ENSIS Technology

• Resonator Style: LD Pumped Yb Fiber

• CW Output Power: 2 kW

• Peak Pulse Output Power: 2 kW

• Power Stability: ±2%

• Laser Wavelength: 1.08 microns

• Laser Power Mode Selection: CW, Gated Pulse (CNC Controlled)

• Laser Beam Mode Output: Multimode

• Beam Divergence: ≤ 41 L/min

• Interlocks: Electrical, Mechanical, and Chiller

• Electrical Requirements: 200V, 3-phase, 60 Hz, 12 kVA max

• Electrical Power Consumption: 9 kW
