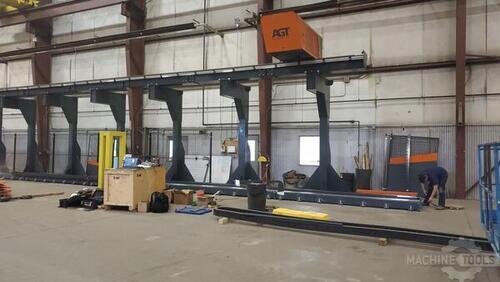

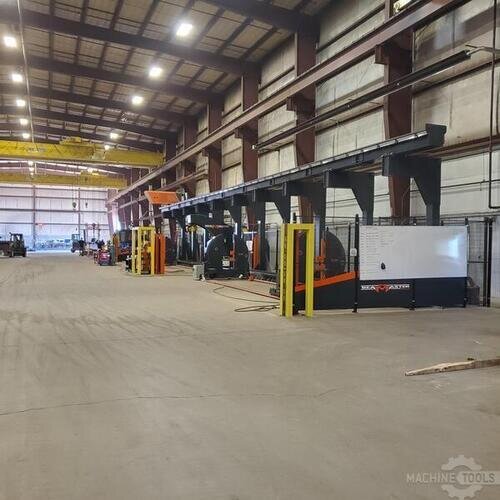

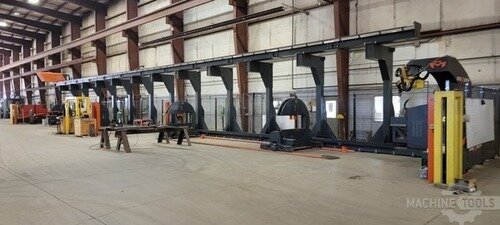

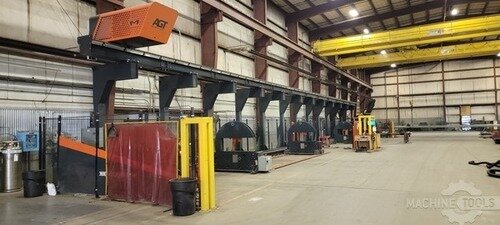

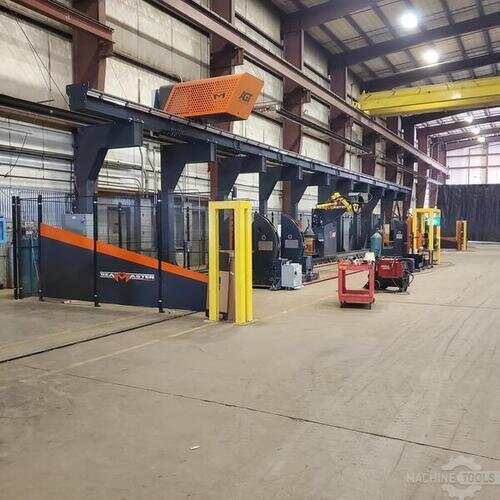

AGT BEAM MASTER BM48R2

Description

Equipped With

EQUIPPED WITH

• AGT Beammaster
• AGT Layoutmaster

Spec Sheet

SPEC SHEET

• AGT Beammaster: BM48R2 [50-BM48R²]

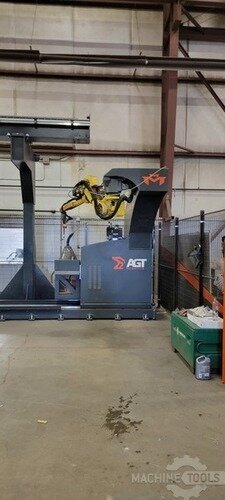

• Robot: Fanuc Arcmate 120iD/12L with R-30iB Controller
• Power Source: Lincoln Powerwave R450 w/ Binzel W500 Water Cooled Torch

Material Handling:

• Zone 1 – 58’ Beam / 37’ Rotator positioning
• Zone 2 – 58’ Beam / 37’ Rotator positioning
• Overall – 93’ Beam
• Max Beam Size: 93’ x W48
• Min Beam Size: 6.75’ x W6x14
• Max HSS Size: 93’ x 20” x 20”
• Min HSS Size: 12‘ x 6“ x 6”

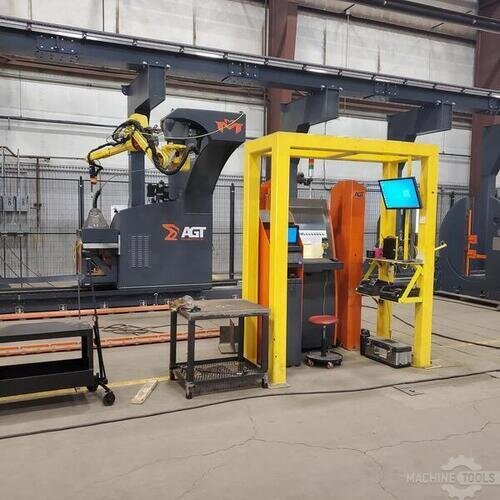

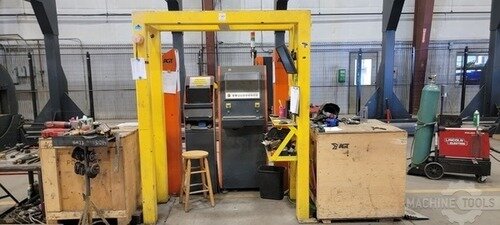

AGT Layout Master model [50-LM-100] LM100 is an augmented reality fitting assistant designed for structural steel fabrication.

Dimensions:

• Width: 40’ – 138’
• Height: 12’

Projection & Fitting Capabilities:

• High-resolution 3D color projection for connections, holes, and part numbers
• Precise fitting assistance for base plates, angle seats, and bearing pads
• Optimized workflow to reduce manual measuring and marking

Model Layoutmaster: [50-LM-100] LM100

Robot: Fanuc Arcmate 120iD/12L with R-30iB Controller

Power Source: Lincoln Powerwave R450 w/ Binzel W500 Water Cooled Torch

Additional option parts included:

• 4m extensions on both zones
• Binzel torch cleaning station
• AGT laser touch device
• Safety zone equipment
• Operator and corner guard protection
• (2)- 500lb boxes of Lincoln L-56 .045” wire
• Various spare parts
• Torch head neck alignment fixture
